SPECIFICATION

Interface:

 2 x auto-sensing 10/100/1000M Base-T ; 1 RJ45 console port

Wireless Standards :

802.11 a/b/g/n/ac

Operating frequency :

2.4 GHz-2.497 GHz, 4.9 GHz – 5.85 GHz

Antenna Type:

Internal omni-directional antennas (Gain: 6.5dBi for 5GHz,5dBi for 2.4GHz)

Ethernet Standard :

IEEE 802.3, IEEE 802.3u, IEEE 802.3x, 802.3ab

POE Standard :

IEEE 802.3at

Operating Voltage :

48VDC +/- 10% POE ;  12V power adapter

Power Consumption :

14W maximum

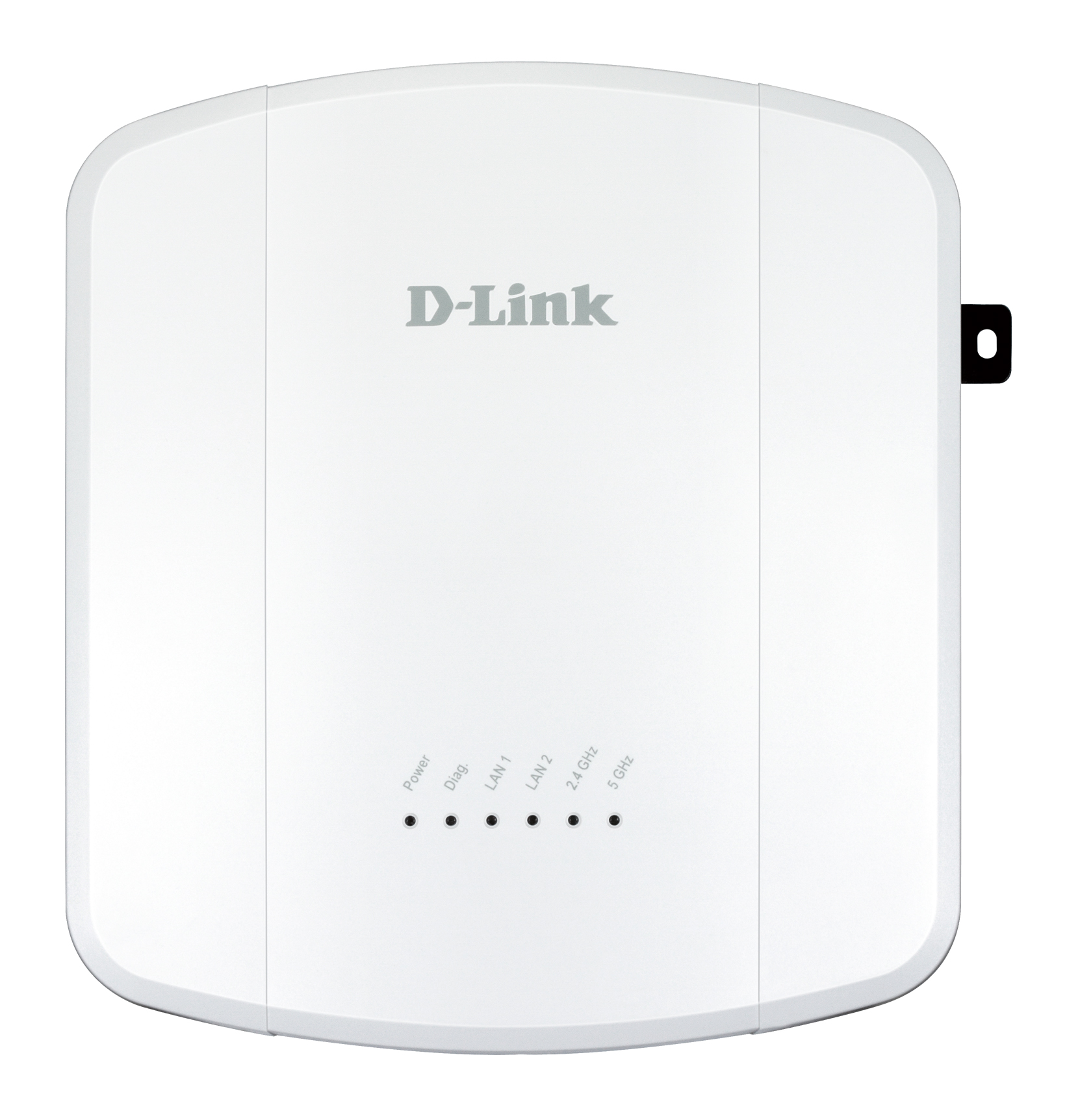

LEDs :

Power LED ;  Diagnostic ; LAN 1 ; LAN 2 ; 2.4GHz ;  5GHz

 Dimension :

198 x 171 x 40 mm

Enclosure :

Bottom cover – metal ; Top cover – plastic ; UL2043 certified

SDRAM :

512MBbyte

Flash :

64Mbyte
