D-Link

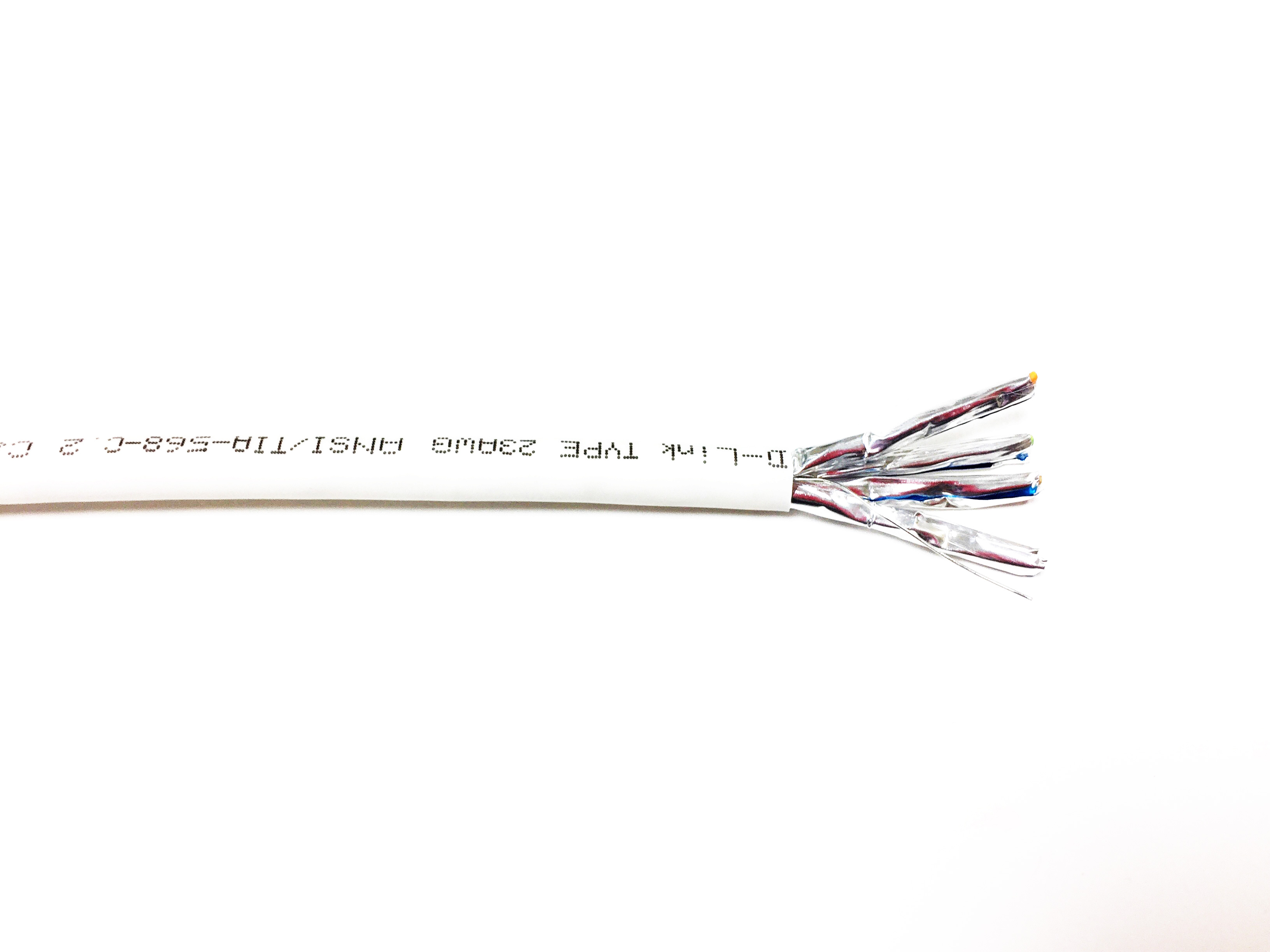

Cat6A U/FTP Cable

NCB-6ASGRYR-500-LS

Complies with Cat6A Specifications
4 Pairs Individually Foiled Twisted Pair (U/FTP) Cable
23 AWG solid copper conductors with a frequency of 500 MHz
Packaged in a MDF spools in a box

SPECIFICATION

Conductor Metal: Bare Copper
Color Code: Gray
Conductor: 23 AWG(0.574 ±0.007mm), Multi-cores (Solid)
Insulation Material: Foam-PE
Jacket Material: LSZH
Cable Diameter:7.6 mm nominal
Heat-resistant: 75ºC minimum(Temperature limited)
Mutual Capacitance:< 5.6nF/100m nominal
Characteristic Impedance: 100± 15Ohms
Pulling force: 11.5Kgs

No	Description	Title	Type	File Size
1	Datasheet	NCB-6ASGRYR-500-LS	pdf	0.5 MB
2	Certification	ETL Certificate	pdf	0.07 MB
3	Certification	Etisalat Approval	pdf	0.09 MB
