SPECIFICATION

Technical Specifications General

Device Interfaces

• IEEE 802.11ac wireless LAN1

• IEEE 802.11 a/b/g/n wireless LAN

• 10/100 fast Ethernet WAN port

• Four 10/100 fast Ethernet LAN ports

LEDs

• Power

• Internet

• WLAN

• LAN (for each port) • WPS

Antenna Type

• Two external antennas

Operating Frequency

• 2.4 GHz band: 2400 - 2483.5 MHz • 5 GHz band: 5150 - 5725 MHz

Standards

• IEEE 802.11ac (draft)

• IEEE 802.11n

• IEEE 802.11g

• IEEE 802.11b

• IEEE 802.11a

• IEEE 802.3u

Minimum Requirements

• Windows 8/7/Vista/XP SP3, or Mac OS X 10.4 or higher • Internet Explorer 7, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

• Ethernet interface or Wi-Fi

• Cable or DSL Modem

• Subscription with an Internet Service Provider

Functionality

Security

• WPA & WPA2 (Wi-Fi Protected Access)

• WPS (Wi-Fi Protected Setup)

Advanced Features

• Web setup wizard

• QoS (Quality of Service)

• DMZ (Demilitarized Zone)

• Firewall - Network Address Translation (NAT)

• Guest zone

• IPv6 ready

mydlink SharePort Features

• Remote Access Mode: Access files through the Internet

• Local Access Mode: Access files from any device connected to the DIR-816L

• SharePort Web File Access support (web browser)

• Access files from any device connected to the DIR-816L

• Accepts USB storage drives up to 250 GB

mydlink Lite Features

• Remote Management

• View current upload/download bandwidth

• View currently connected clients

• View web browsing history per client

• Block/unblock client network access

• Manage wireless network details

• Accessible through a web browser or iOS or Android mobile app

Mobile App Support

• mydlink Lite

• mydlink SharePort

• QRS Mobile

• Apps support iPhone®, iPad®, iPod Touch®, and Android™ devices

Physical

Dimensions

• 151.6 x 112 x 30.5 mm (5.97 x 4.41 x 1.2 inches)

Weight

• 204 grams (7.2 ounces)

Power

• Input: 100 to 240 V AC, 50/60 Hz

Temperature

• Operating: 0 to 40 °C (32 to 104 °F)

• Storage: -20 to 65 °C (-4 to 149 °F)

Humidity

• Operating: 10% to 90% non-condensing

• Storage: 5% to 95% non-condensing

Certifications

• IC • CE • CSA

• FCC • C-Tick

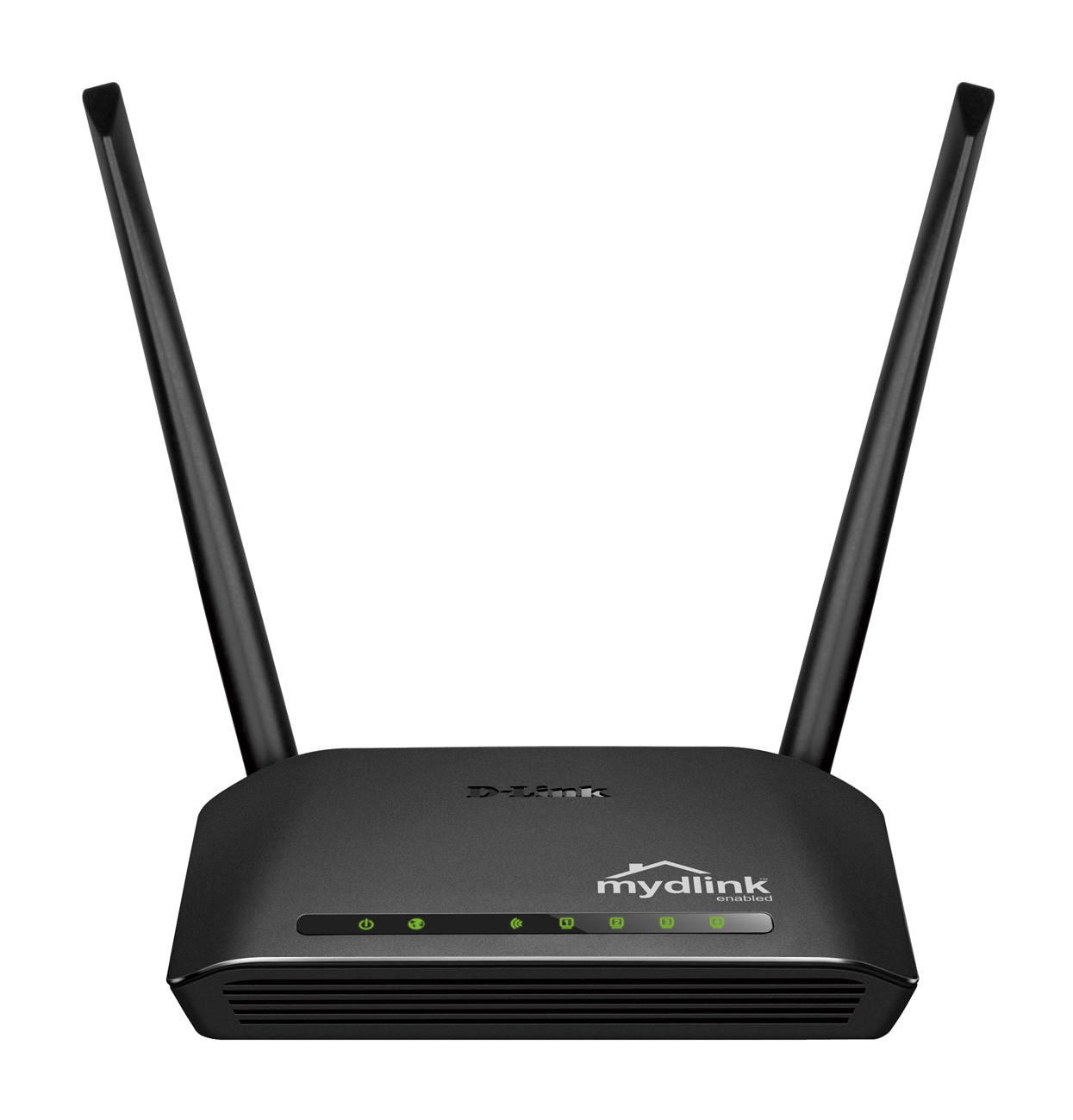

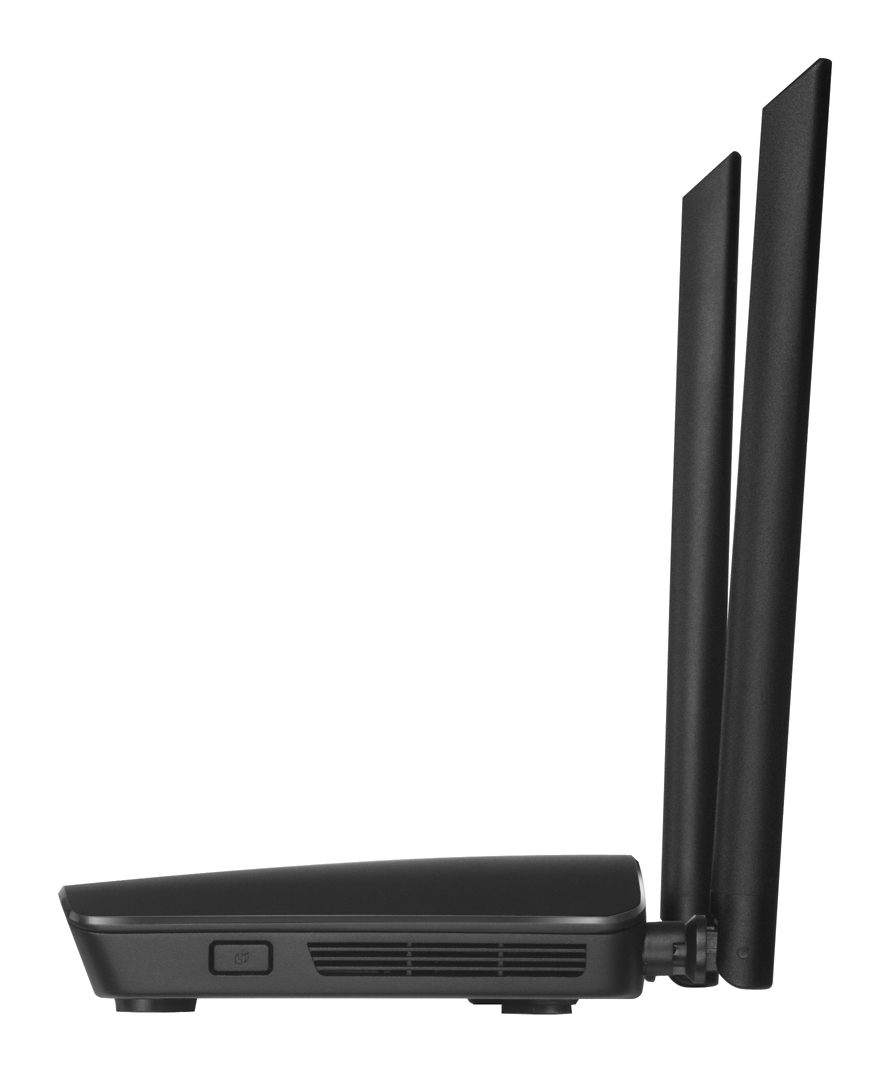

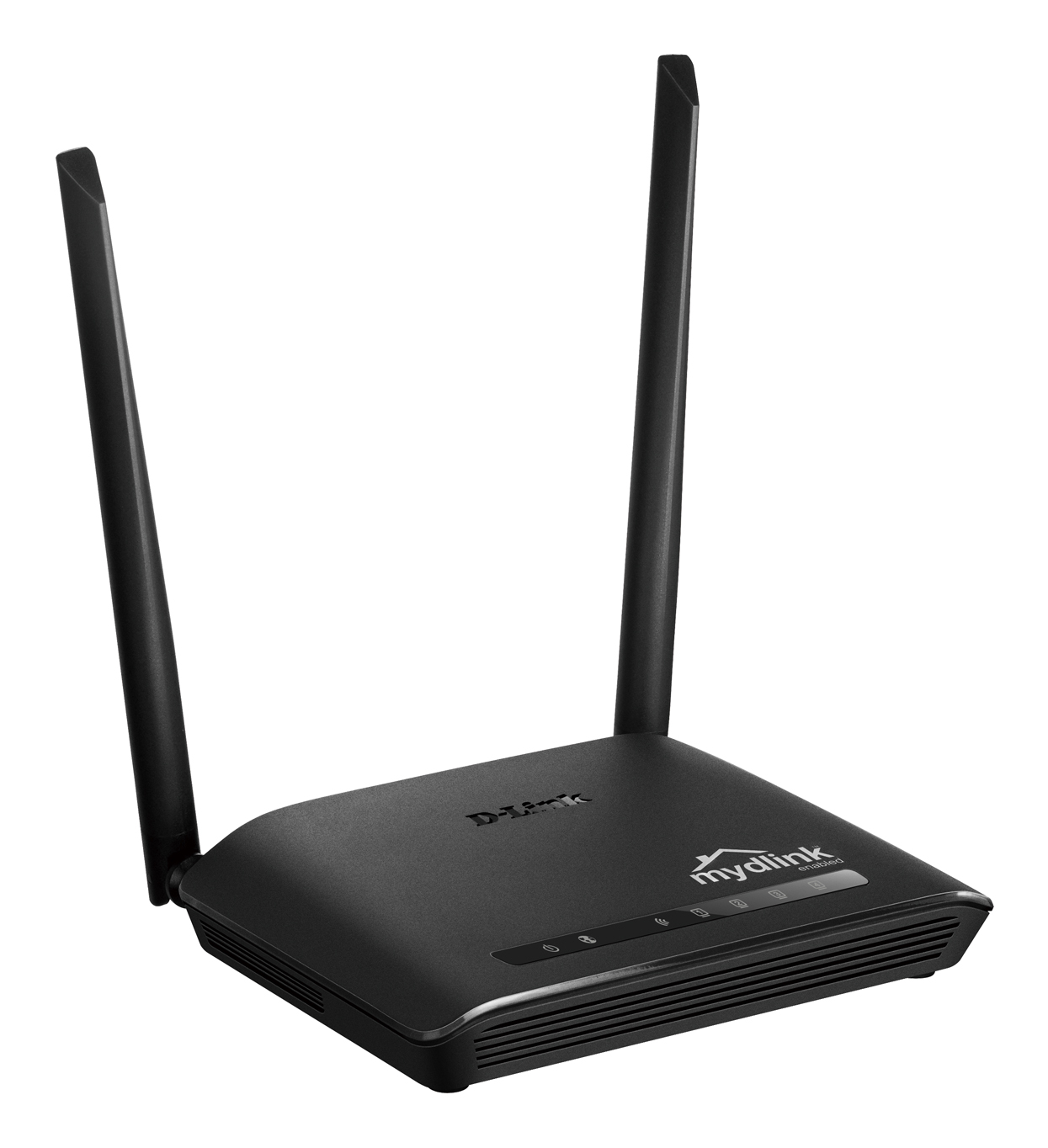

DIR-816L Wireless AC750 Dual Band Cloud Router

1 Maximum wireless signal rate derived from draft IEEE 802.11ac and IEEE 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range. Wireless range and speed rates are D-Link relative performance measurements based on the wireless range and speed rates of a standard wireless product from D-Link. Maximum throughput based on D-Link 802.11ac devices.
