SPECIFICATION

Features

Ideal for Business and Campus Environments

• Blazing performance with combined wireless speeds of up to 867+300 Mbps¹
• 2 Gigabit Ethernet LAN ports for bridging another device, such as camera or AP
• Automatic load-balancing between linked APs
• Combine with D-Link’s Wireless Controllers or Unified Switches to control and manage up to 1,024 access points³

Trusted Security

• WPA/WPA2 Personal and Enterprise
• MAC address filtering
• Rogue AP detection

RF Management

• Automatic channel selection
• Automatic transmit power adjustment

Convenient Installation

• IP67-compliant housing, allowing it to withstand very harsh weather conditions
• Can be easily attached to a wall or pole using the provided mounting kits
• Supports 802.3at Power over Ethernet, allowing the unit to be installed in remote locations

General

Device Interfaces

• 802.11a/g/n/ac 2x2 MIMO

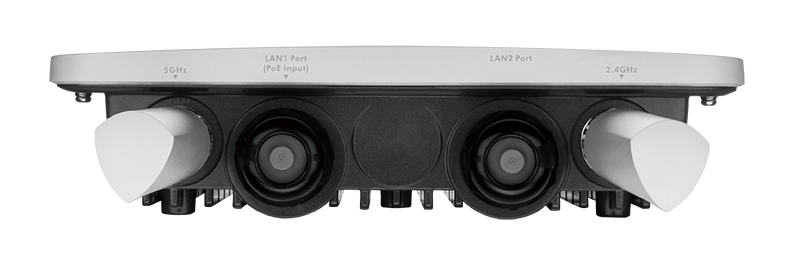

• 2 Gigabit LAN Ports (one port supporting 802.3at PoE)
• 4 N-Type antenna connectors (2 x 2.4 GHz, 2 x 5 GHz)

Operating Frequency

• 2400 MHz to 2483.5 MHz ISM band
• 5.180 GHz to 5.240 GHz
• 5.280 GHz to 5.320 GHz
• 5.500 GHz to 5.700 GHz
• 5.745 GHz to 5.825 GHz

Data Transfer Rate

• 802.11ac: 433 Mbps-867 Mbps
• 802.11n: 6.5 Mbps-300 Mbps
• 802.11g: 54, 48, 36, 24, 12, 9, and 6 Mbps
• 802.11a: 54, 48, 36, 24, 12, 9, and 6 Mbps

Operating Channels

• 1 to 13 channels for 2.4 GHz band (per country code)
• 36 to 165 channels for 5 GHz band (per country code)

Antenna

• 2 x 7 dBi gain for 5 GHz radio
• 2 x 5 dBi gain for 2.4 GHz radio
• 4 external omni-directional antennas included

Functionality

SSID Security

• Up to 32 SSIDs, 16 per radio
• 802.1Q VLAN
• Station Isolation

Wireless Security

• WPA/WPA2 Personal / Enterprise
• AES
• TKIP

Detection & Prevention

• Rogue and Valid AP Classification

Authentication

• MAC Address Filtering

Network Management

• Operational modes
  • Standalone
  • AP Array
  • Managed (with DWC-2000, DWC-1000, DWS-4026 or DWS-3160 Series)
• Web-based user interface (HTTP/HTTPS)
• Telnet/SSH
• SNMP

¹ Maximum wireless signal rate is as specified by the IEEE 802.11ac and 802.11n standards. Actual data throughput will vary. Network and other environmental factors, including volume of network traffic, building materials, and nearby radio interference may lower actual data throughput.

² This feature is available when the DWL-8710AP is used in conjunction with D-Link’s lineup of Unified Wireless Switches and/or Controllers.

³ When deployed in conjunction with a cluster of 4 x DWC-2000 with optional D-Link Business Wireless Plus Licenses.
