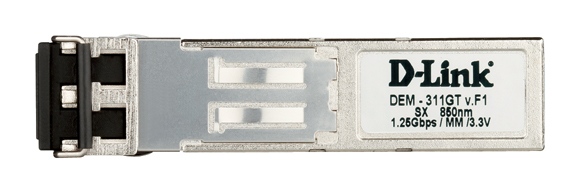

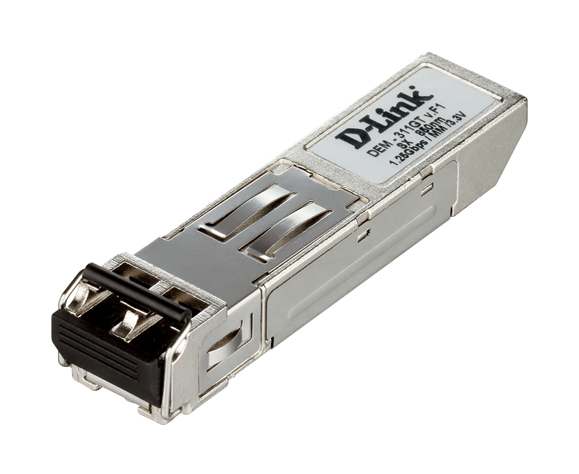

1000BASE-SX MINI GIGABIT INTERFACE CONVERTER

As a high performance hot pluggable Mini Gigabit Interface Converter, the DEM-311GT provides gigabit speeds on multimode fiber networks.

Product/Performance Specifications

Optical Receiver Sensitivity

-18dBm (max)

Interface Options

Connector Type

Operational Ranges

Support Voltage

3.1-3.5V

Max Voltage

6.0V

Max Current

300mA

Safety Certifications and Environmental Information

Class 1 Laser

EN 60825-1

FDA 21

1040.10 & 1040.11

Physical Specifications

Dimensions (WxDxH)

1.19 x .47 x 2.25in (3.02x 1.19 x 5.71cm)

Warranty and Support Information

Warranty

2 Year Warranty

Support

Free Technical Support

Ordering Information

Part Number

•	*Description*

DEM-310GT

•	1000BASE-LX SFP Up to 10km

DEM-311GT

•	1000BASE-SX SFP Up to 220/550m

No	Description	Title	Type	File Size
1	Datasheet	Datasheet: DEM-311GT	pdf	1.19 MB
