D-Link

AX1500 Smart Router

Experience self-optimizing Wi-Fi, powered by AI

Dual-band 2x2 Wi-Fi 6 delivers blazing fast connectivity with increased range and reliability
Up to 1201Mbps (5GHz) and 300Mbps (2.4GHz) speeds
Mesh capability with other Eagle Pro AI devices

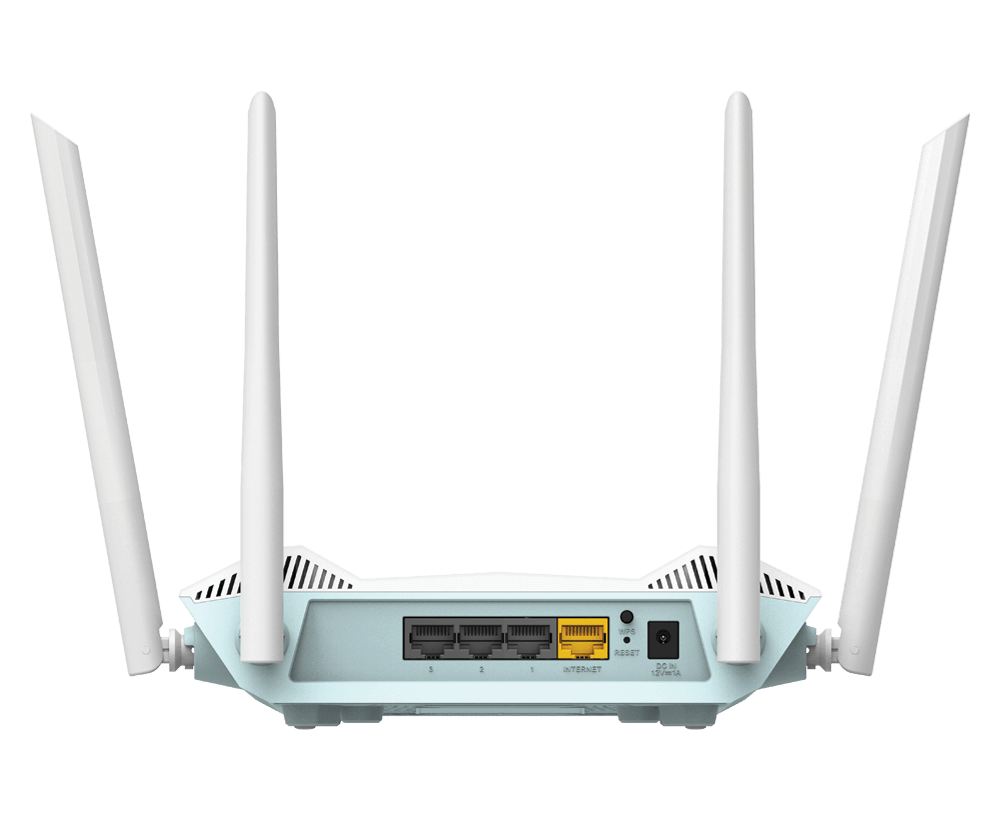

1 x 10/100/1000 Gigabit Ethernet WAN port
3 x 10/100/1000 Gigabit Ethernet LAN ports
Supports WPA, WPA2, and the latest WPA3 Wi-fi Security
Clean Network Initiative compliant for security and privacy
Voice control compatibility with Google Assistant and Amazon Alexa
Eagle Pro AI features including
- AI Wi-Fi Optimizer
- AI Mesh Optimizer
- AI Traffic Optimizer
- AI Parental Control
- AI Assistant

Device Management	EAGLE PRO AI app (iOS and Android), Web UI
Device Interfaces	3 x Gigabit Ethernet LAN ports, 1 x Gigabit Ethernet WAN port, 1 x WPS button, 1 x power connector
Storage Humidity	5% to 95% non-condensing
Operating Temperature	0 to 40 °C (32 to 104 °F)
WAN Interface	Static IP, Dynamic IP, PPPoE, PPTP, L2TP, DS-Lite, Support 802.1p & 802.1q
Voice Assistants	Amazon Alexa, Google Assistant
Dimensions	251.64 x 166.47 x 194.18 mm
Operating Humidity	10% to 90% non-condensing
LED	Power, Internet, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi
Antenna Type	Four external antennas
Wi-Fi Data Rate	2.4 GHz Up to 300 Mbps, 5 GHz Up to 1201 Mbps
Security Protocol	WPA2 (Wi-Fi Protected Access), WPA3(Wi-Fi Protected Access), WPS (Wi-Fi Protected Setup)
IEEE Standard	IEEE 802.11ax/ac/n/g/b/k/v/a/h, IEEE 802.3u/ab
Weight	300 g
Power Adapter	12V/1A
Storage Temperature	-20 to 65 °C (-4 to 149 °F)
Certifications	CE , FCC, IC

No	Description	Title	Type	File Size
1	Datasheet	R15_Datasheet_for_egypt	pdf	0.54 MB
