D-Link

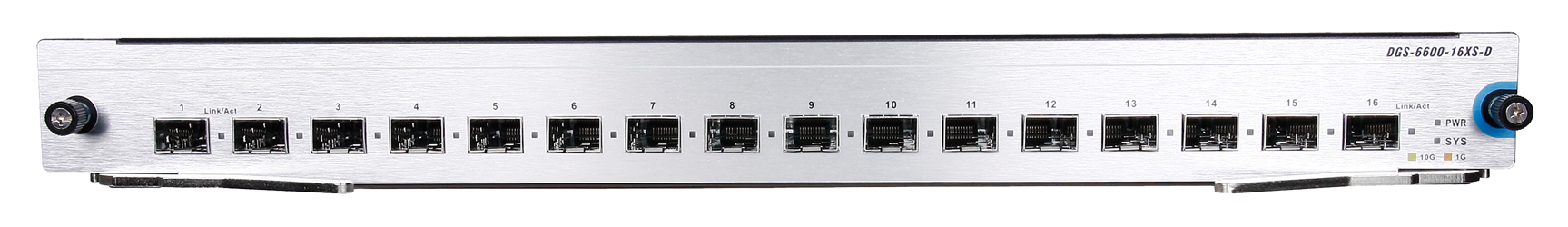

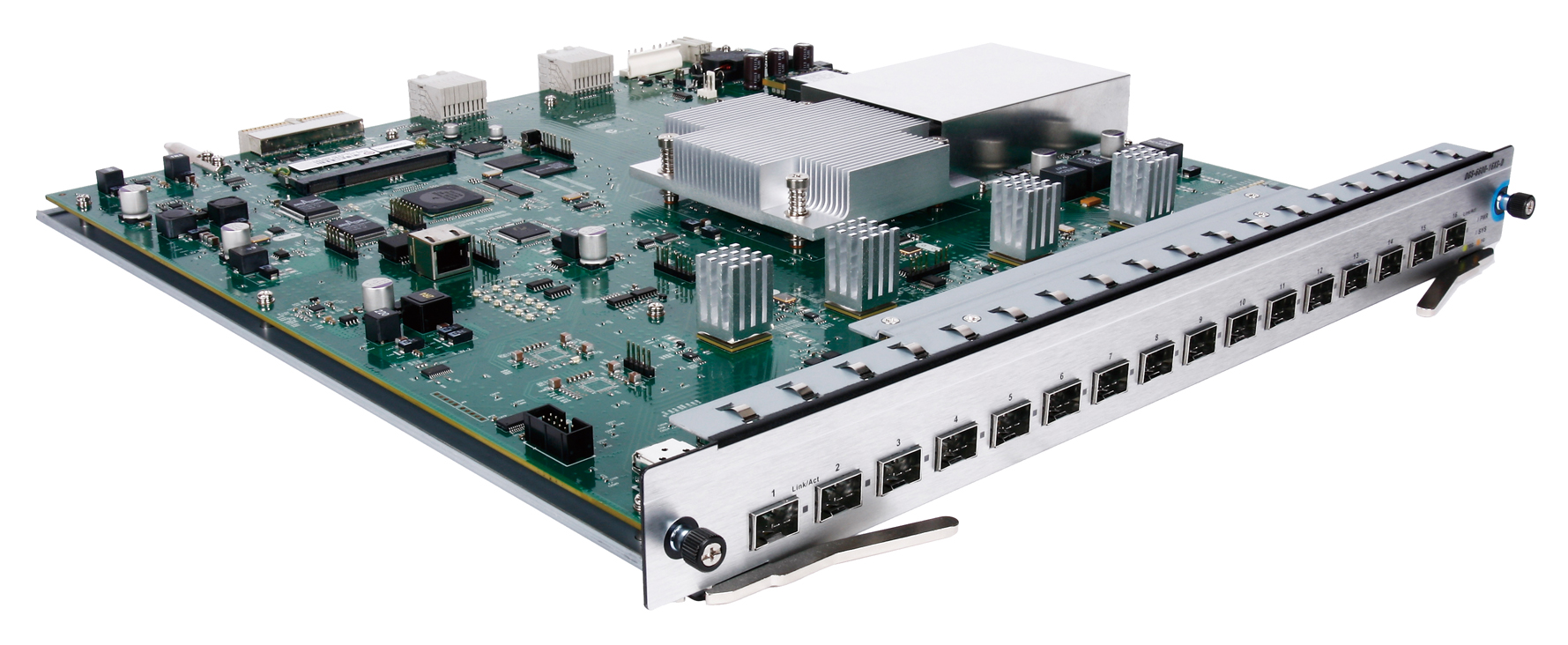

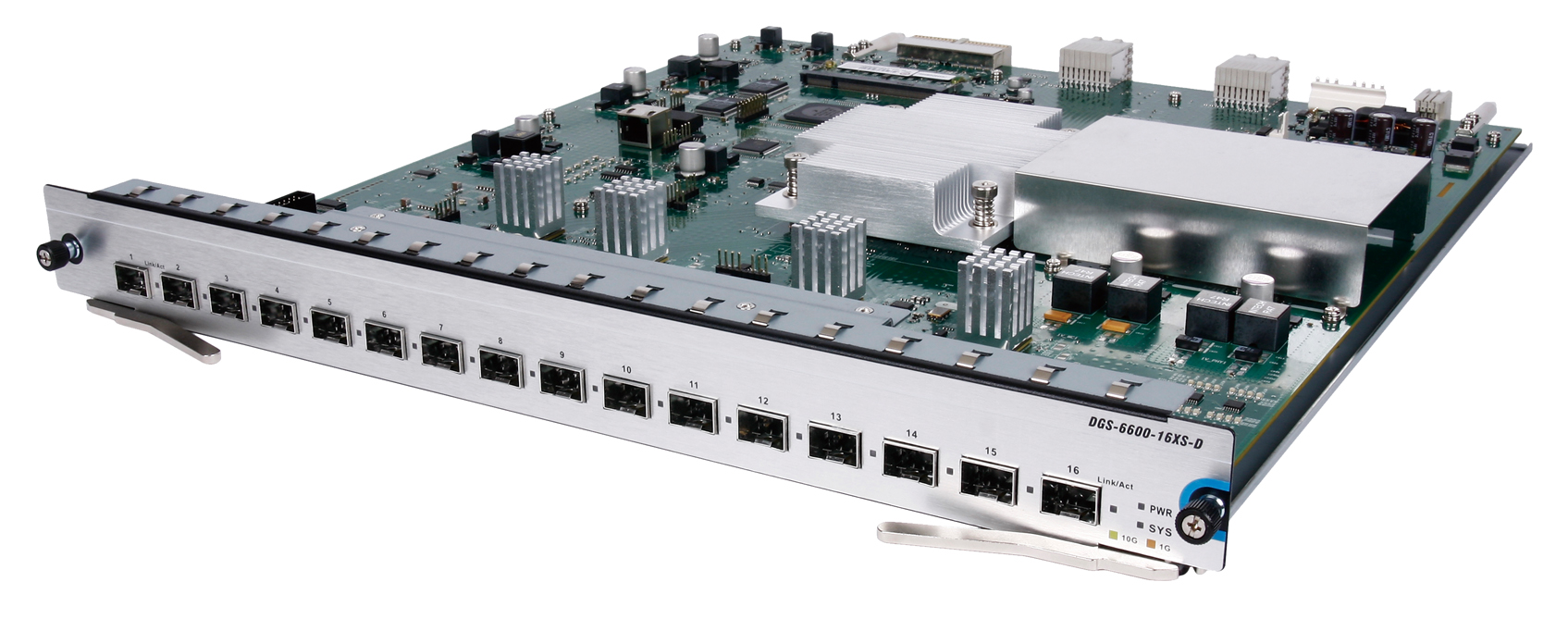

16 Port 10G SFP+ Module for DGS-6600 Chassis Switch

DGS-6600-16XS-D

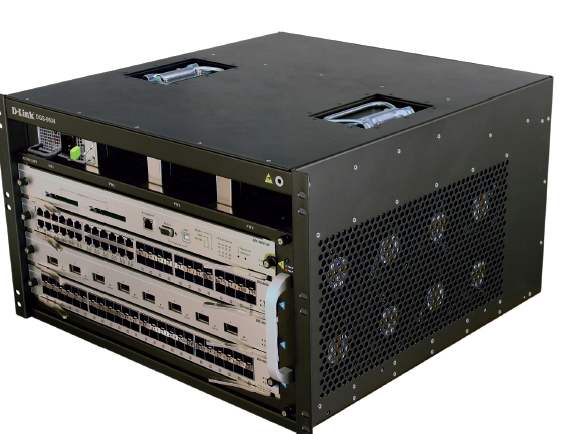

Includes DGS-6604 4 Slot Chassis, 1 Control Module

1 850W Power Supply, 1 Fan Module
1 48 Port Gigabit Hot Swappable Switch Module

Featuring a flexible modular architecture and industry standard compliance, these switches provide scalable expansion and a high level of investment protection for businesses to deploy Gigabit and 10-Gigabit packet switching and routing for office networking and Ethernet-based Internet services to homes.

The DGS-6600 series is equipped with high-speed switch fabric, and advanced software functions, including complete IPv6 support. These switches provide the performance, high availability and future proof architecture suitable for applications of not just today, but those of the future.

SPECIFICATION

Specifications

Chassis Slots-4
Fixed Slots (for Control Modules)-1
Open Slots (for Port Modules)-3
Max. Switching Capacity
576 Gbps
Max. Packet Forwarding Rate
428.57M pps
10/100/1000BASE-T Ports
144
SFP Slots
144
10-Gigabit Ethernet XFP Slots
24

Supported Modules

DGS-6600-48T, DGS-6600-48S, DGS-6600-DGS-6600-48TS, DGS-6600-48P1, DGS-6600-24SC2XG1, DGS-6600-8XG
CPU Engine
DGS-6600-CM
Power Supply
DGS-6600-PWR
Fan Module
DGS-6600-FAN

Software Features

L2 Features
MAC Address Table
32K per I/O module
Flow Control
802.3x Flow Control
HOL Blocking Prevention
Jumbo Frame up to 9,732 Bytes
IGMP Snooping
IGMP v1/v2/v3 Snooping
Supports 2K Groups
IGMP Proxy
Port-based IGMP Snooping Fast Leave
Spanning Tree
802.1D STP
802.1w RSTP
802.1s MSTP
Root Restriction
Link Aggregation
Compliant with 802.1AX and 802.3ad
Max. 128 groups per device
8 ports per group
Supports cross-module trunk
Port Mirroring
Supports 3 mirroring groups
One-to-One
Many-to-One
Port mirroring for Tx/Rx/Both
RSPA
ERPS (Ethernet Ring Protection Switching)
MLD Snooping
MLD v1/v2 Snooping
Supports 2K groups
Host-based MLD Snooping Fast Leave
Loopback Detection
L2 Protocol Tunneling

VLAN

VLAN Group
Max. 4K VLAN
GVRP
Max. 256 dynamic VLANs
802.1Q Tagged VLAN
802.1v Protocol VLAN
Port-based VLAN
MAC-based VLAN
Subnet-based VLAN
Double VLAN (Q-in-Q)
Port-based Q-in-Q
Selective Q-in-Q 2
L3 Features
Max 4K IP interface
VRRP
IPv6 Tunneling
Manual
ISATAP
6to4
IPv6 Neighbor Discovery (ND)
IPv6 Ready Phase
Proxy ARP
Gratuitous ARP

L3 Routing

12K hardware routing entries shared by IPv4/IPv6
8K hardware L3 forwarding entries shared by IPv4/v6
256 static routing entries for IPv4/IPv6
Support ECMP /WCMP 2
Policy-based Routing
RIP
RIP v1/v2
RIPng (IPv6)
OSPF
OSPF v2
OSPF v3 (IPv6)
OSPF Passive Interface
Stub/NSSA Area
OSPF Equal Cost Route
BGP v4
BGP+ v4 (IPv6)

L3 Multicasting

2K hardware multicast groups
PIM-DM
PIM-DM v6
PIM-SM
PIM-SM v6
PIM Sparse-Dense Mode
IGMP v1/v2/v3
DVMRP v3
QoS (Quality of Service)
802.1p Class of Service (CoS)
8 queues
Queue Handling:
Strict Priority
Weighted Round Robin (WRR)
Strict+WRR
Deficit Round Robin (DRR)
WDRR
CoS Based on:
Switch Port
VLAN ID
802.1p Priority Queues
MAC Address
IPv4/v6 Address
DSCP
Protocol Type
IPv6 Traffic Class
IPv6 Flow Label
TCP/UDP Port

User-defined Packet Content

Supports following actions for flows:
Remark 802.1p Priority Tag
Remark TOS/DSCP Tag
Bandwidth Control
Committed Information Rate (CIR), min. granularity 64Kbps
Bandwidth Control
Port-based (Ingress/Egress, min. granularity 64 Kbps)
Time-based QoS
Three Color Marker
trTCM
ACL (Access Control List)
Ingress / Egress ACL
ACL Based on
802.1p Priority
VLAN ID
MAC Address
IPv4/v6 Address or IP Prefix
DSCP/IP Precedence
IP Protocol Type
TCP/UDP Port Number
Combination of the above
Time-based ACL

Security

SSH v2
Port Security up to 16 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control
DoS Attack Prevention
AAA
802.1X
Port-based Access Control
MAC-based Access Control
Dynamic VLAN Assignment
RADIUS Authentication for Switch Access
Guest VLAN1
Web-based Access Control (WAC)
Port-based Access Control
Host-based Access Control
Dynamic VLAN Assignment
MAC-based Access Control (MAC)
Port-based Access Control
Host-based Access Control
Dynamic VLAN Assignment

Warranty Information

Warranty
Limited Lifetime Warranty
Ordering Information
DGS-6604-SK-48T
Starter Kit: DGS-6604 + DGS-6600-CM + DGS-6600-48T + DGS-6600-PWR
1. Features available in future products
2. 1-Year Limited Warranty available only in the USA and Canada Product specifications, size, and shape are subject to change without notice.
