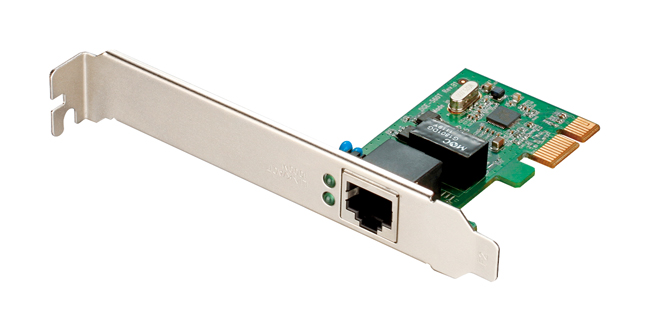

10/100/1000Mbps PCI Express Gigabit Adaptor
DGE-560T
SPECIFICATION
| Technical Specifications | |
| General | |
| Standards |
•IEEE802.3,802.3u,802.3ab •IEEE802.3azEnergyEfficientEthernet •802.3xFlowControl •PCIExpressv.1.1 |
| Power |
•3.3V •MaximumPowerConsumption:0.72Watts |
| Data Transfer Rate | • Gigabit |
| Network Operation Mode | • Full Duplex (2000 Mbps) |
| Installable Slot | • PCI Express x1 |
| Supported Functions |
•9KBJumboFrame •RemoteBoot(PXE/RPL) •802.1pPriorityEncoding •SimpleNetworkManagementProtocolAgent •802.1QVLANTagging •DiagnosticsUtility •WakeonLAN |
| Functionality | |
| Driver Support |
• Microsoft Windows 7 32/ 64bit • Free BSD 7.x and 8.0 • Microsoft Windows Vista 32/ 64bit • NDIS2 for DOS • Microsoft Windows XP 32/64 bit • Novell client for DOS (ODI Client) • Microsoft Windows 2000 • Novell server driver (Support OS 5.X and 6.X) • Linux for Kernel 2.4.x , 2.6.x • Mac OS 10.4, 10.5, 10.6 (x86-based Mac computer) |
| Diagnostic LED | • Link/Activity • 1000 M |
| Physical | |
| Dimensions | • 65 x 40 x 12 mm (2.56 x 1.57 x 0.47 inches) |
| Temperature | • Operating: 0 to 40 °C (32 to 104 °F) • Storage: -40 to 70 °C (-40 to 158 °F) |
| Humidity | • Operating: 10% to 90% non-condensing |
| Certifications |
• CE • IC • FCC • BSMI |
| Order Information | |
| Part Number | DGE-560T |
| DGE-560T | PCI Express Gigabit Ethernet Adapter |
