D-Link

N300 Smart Router

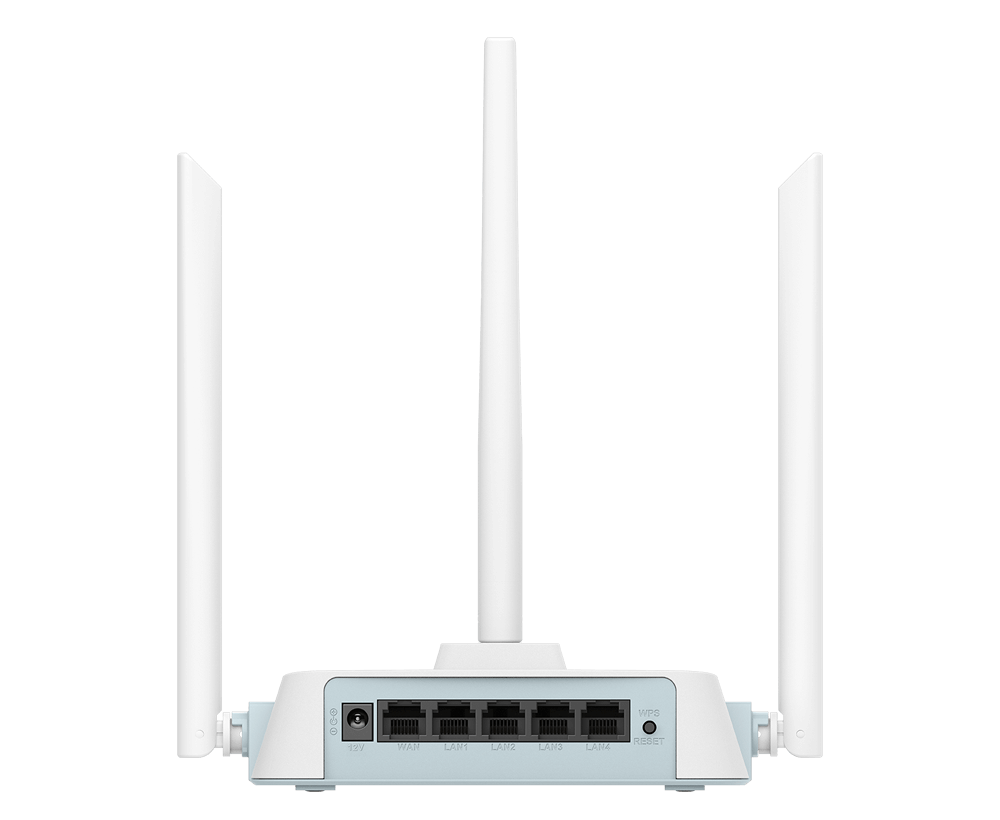

Device Interfaces	4 x 10/100 Mbps LAN ports, 1 x 10/100 Mbps Ethernet WAN port, 1 x Reset/WPS button, 1 x power connector
Antenna Type	3 x external dipole antennas (5 dBi)
Wi-Fi Data Rate	2.4 GHz Up to 300 Mbps
Wireless IEEE Standard	IEEE 802.11n/g/b, IEEE 802.3u/b, IEEE 802.11k/v
WAN Interface	PPPoE, PPTP, L2TP, DS-Lite, Supports 802.1p & 802.1q; VLAN tagging and Priority bit, Concurrent session: 32,000
Security Protocol	WPA/WPA2-Personal, WPA2-Personal only, WPA2/WPA3-Personal (WPS not supported), WPA3-Personal only (WPS Not supported)
Firewall	DoS, Stateful Packet Inspection, Anti-spoofing Checking, IP/MAC Address Filtering, 1 x DMZ
QoS	D-Link QoS Technology
SpeedTest	Ookla SpeedTest
Device Management	Eagle Pro AI app (iOS and Android), Web UI
Voice Assistant	Amazon Alexa, the Google Assistant
Hardware version	A1
Dimensions	158 x 131.35 x 43.73 mm (LWH)
Weight	168 g
Power Input	12V 1A
Maximum Operating Voltage	12V
Operating Temperature	0 to 40 °C (32 to 104 °F)
Storage Temperature	-20 to 65 °C (-4 to 149 °F)
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 95% non-condensing
Certifications	CE, FCC

No	Description	Title	Type	File Size
1	Datasheet	Datasheet	pdf	0.47 MB
