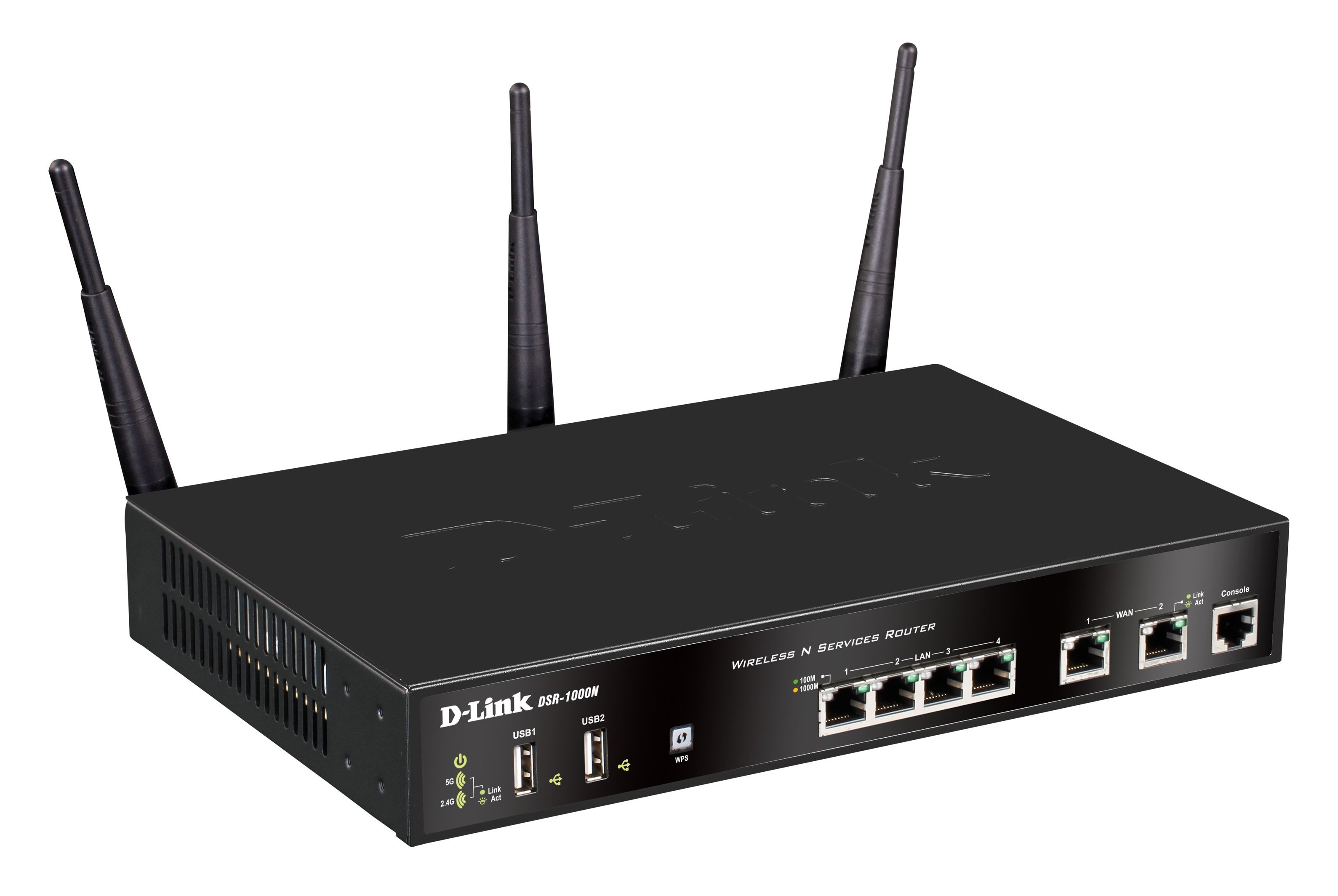

Unified Wireless N Services Router

DSR-1000N *(This product has been discontinued)

Comprehensive Management Capabilities

The DSR-1000N includes dual-WAN Gigabit Ethernet which provides policy-based service management, ensuring maximum productivity for your business operations. The Outbound Load Balancing feature1 adjusts outgoing traffic across two WAN interfaces and optimises the system performance resulting in high availability. The second WAN port can be configured as a DMZ port allowing you to run isolated servers on your LAN.

Superior Wireless Performance
Designed to deliver superior wireless performance, the DSR-1000N includes Wireless N on either the 2.4 GHz or 5 GHz radio bands. Multiple In Multiple Out (MIMO) technology allows DSR-1000N to provide high data rates with minimal “dead spots” throughout the wireless coverage area.

Flexible Deployment Options
The DSR-1000N supports 3G mobile connectivity via its USB ports2.This capability offers an additional secure data connection for networks that provide critical services. The DSR-1000N can be configured to automatically switch to a 3G network whenever a physical link is lost.
Robust VPN Features
A fully featured virtual private network (VPN) provides your mobile workers and branch offices with a secure link to your resources. Site-to-site VPN tunnels use IP Security (IPSec) Protocol, Point-to-Point Tunneling Protocol (PPTP), or Layer 2 Tunneling Protocol (L2TP) to facilitate branch office connectivity through encrypted virtual links.

Efficient Green Technology
As a concerned member of the global community, D-Link is devoted to providing eco-friendly products, which save power and money while extend the product’s lifespan. The D-Link Green WLAN Scheduler reduces wireless power automatically during off-peak hours. Likewise the D-Link Green Ethernet technology adjusts power usage based on the detected cable length and link status. In addition, compliance with RoHS (Restriction of Hazardous Substances) and WEEE (Waste Electrical and Electronic Equipment) directives make D-Link Green certified devices the environmentally responsible choice

SPECIFICATION

Interfaces

2x Gigabit WAN Port
4x Gigabit LAN Port
1x RJ-45 (console)
2x USB2.0

System Performance

Firewall Throughput: 130 Mbps
VPN ThroughpuT: 70 Mbps
Concurrent Sessions: 60,000
New Sessions: 600 per second
Policies: 100 (each feature), 600 (firewall rule)

Internet connection type

Static/Dynamic IP
PPPoE/Multiple PPPoE
L2TP
PPTP

Firewall system

Static route
RIPv1, v2
OSPF4
Dynamic DNS
Inter-VLAN route
NAT, PAT
Web Content Filtering (static URL, keywords)
Intrusion Prevention System (signature package included in firmware)

Networking

DHCP Server/Client
DHCP Relay
IEEE 802.1q VLAN (port-based)
IP multicast
IPv6
Route failover
3G redundancy
Outbound load balancing

Wireless

802.11a/b/g/n
Multiple SSID
SSID-to-VLAN mapping
WEP/WPA/WPA2 Personal/Enterprise

Virtual Private Network (VPN)

VPN tunnels: 70
Encryption: DES, 3DES, AES, Twofish, Blowfish, CAST-128, NULL
IPSec/PPTP/L2TP servers
IPSec NAT traversal
Dead Peer Detection
IP ESP
IP AH
VPN keep-alive
Hub-and-spoke

SL Virtual Private Network (SSL VPN)

SSL VPN tunnels: 20
SSL encryption: DES, 3DES, AES
SSL Message Integrity: MD5, SHA1
Advanced IDP/IPS Subscription

Bandwidth management

Maximum bandwidth limitation
Bandwidth control (3 classes, port-based QoS)

System management

Web-based user interface (HTTP, HTTPS)
Command line
SNMP v1, v2c, v3

Physical & Environmental

Internal Power Supply (12VDC, 2.5A)
Dimensions: 180 x 280 x 44 mm (11” Rack-Mount)
Operating Temperature: 0° to 40° C
Storage Temperature: -20° to 70° C
Operating Humidity: 5% to 95% non-condensing
EMI: FCC Class A, CE Class A, C-Tick, VCCI
Safety: UL LVD (EN60950-1)
MTBF: 260,000 hours
