SPECIFICATION

General Specification

• 1/3” Megapixel WDR Progressive Scan CMOS sensor
• WDR SN ratio: 100 dB
• Motorized varifocal autofocus lens 3.3 ~ 12 mm, F1.4 ~ F360C View Angle
• Vertical 63.6° (W) ~ 17.9° (T)
• Horizontal 89.8° (W) ~ 23.9° (T)
• Diagonal 125.7° (W) ~ 29.9° (T) IR LED
• 12 LEDs and light sensor
• 20 meter illumination distance Minimum illumination
• Color: 0.2 lux @ F1.4
• B/W: 0.02 lux @ F1.4
• B/W: 0 lux with IR LED on 3-axis angle:
• Vertical: 120
• Horizontal: 340
• Rotational: 300

System Requirements

• Operating System: Microsoft Windows XP, Vista, Windows 7
• Internet Explorer 6 or above, Firefox 3.5 or above, Safari 4 Networking Protocols
• IPv4, DHCP, ARP, DNS, TCP/IP, DDNS (D-Link), HTTP, HTTPS, UPnP™ Port Forwarding, Samba, SMTP, PPPoE, NTP (D-Link),     FTP, RTP,RTSP, UDP, RTCP, ICMP, 3GPP

Network Interface
• 10/100BASE-TX Fast Ethernet (PoE enabled) Video Codecs
• H.264
• MPEG4
• MJPEG
• JPEG for still images

Resolution (up to 30 fPS)

• 1280x1024
• 1280x720
• 640x480
• 320x240
• 160x120

Video Features

• Adjustable image size, quality and bit rate
• Time stamp and text overlays
• 3 configurable privacy masks
• Flip & mirror Audio Codecs
• G.726
• G.711

Power Input

• 12 V DC 1.25 A
• 24 V AC
• 802.3af PoE

Physical and Environmental

• IP-66 weather-proof standard
• IK-10 vandal-proof standard
• Built-in heater and fan

Weight

• 1030.5 g

Temperature

• Operation: -40 to 50 ?C (-40 to 122 ?F)
• Storage: -20 to 70 ?C (-4 to 158 ?F)

Relative Humidity

• 20% to 80% non-condensing

Certifications

• FCC
• IC
• C-Tick
• CE
• LVD

Included Mounting Accessories

• Surface mount (DCS-34-1)

Optional Mounting Accessories

• Pendant mount (DCS-34-2)

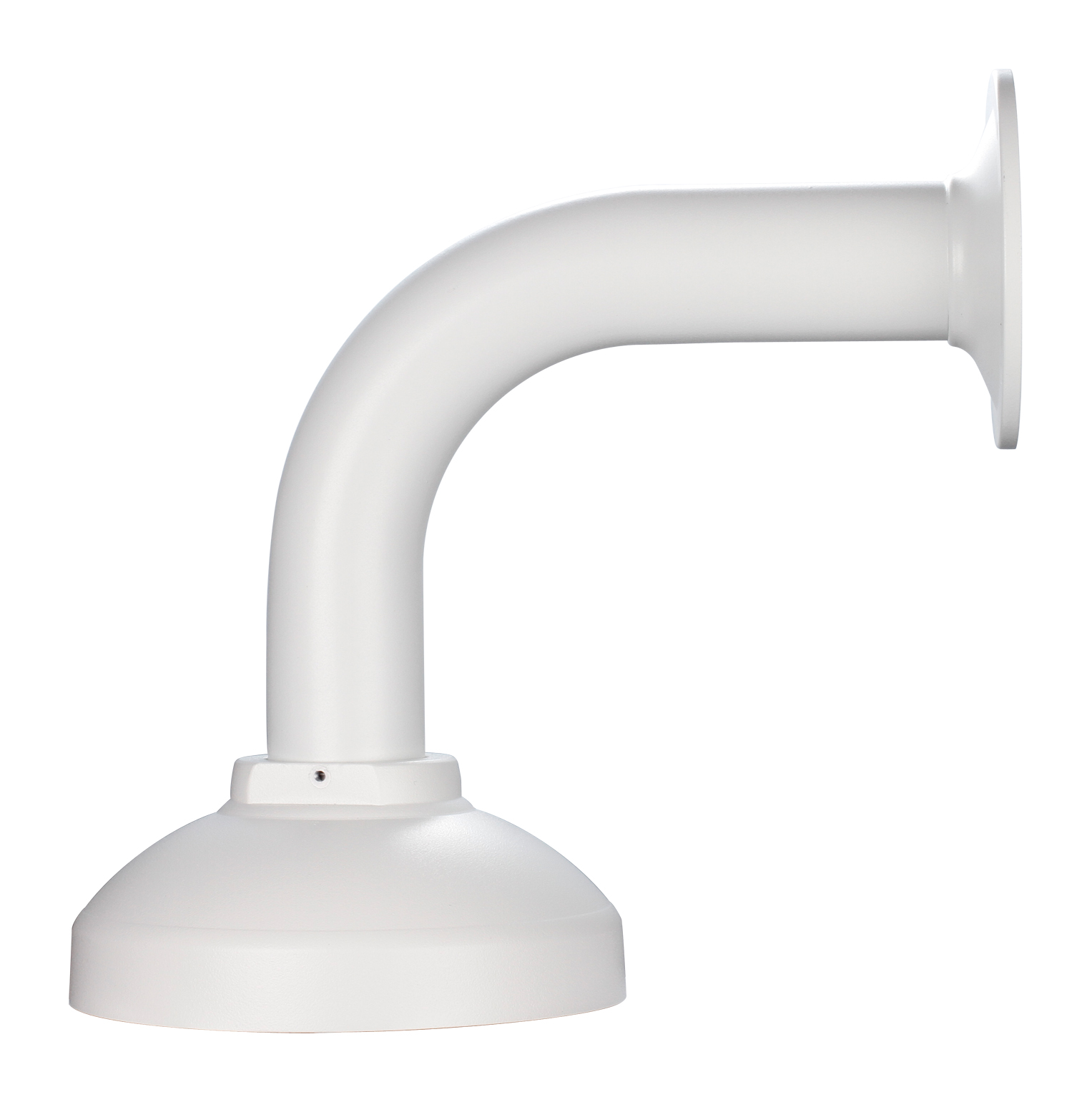

• Bent mount (DCS-34-3)
