SPECIFICATION

---

Device Interfaces

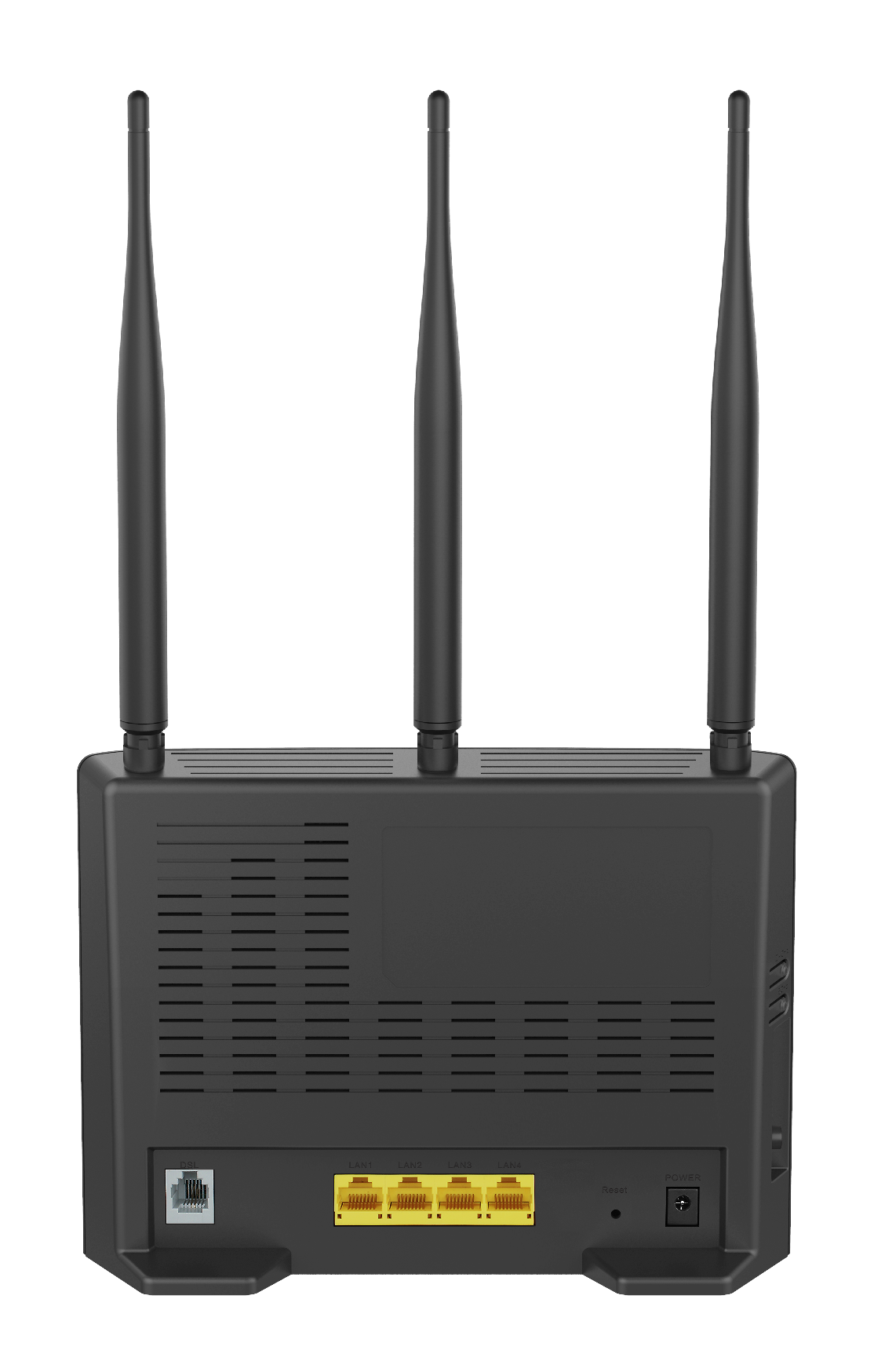

• 10/100/1000 Gigabit Ethernet WAN port

• 802.11 ac/n/g/b Wireless LAN

• Four 10/100 Fast Ethernet LAN ports

• RJ-11 ADSL port

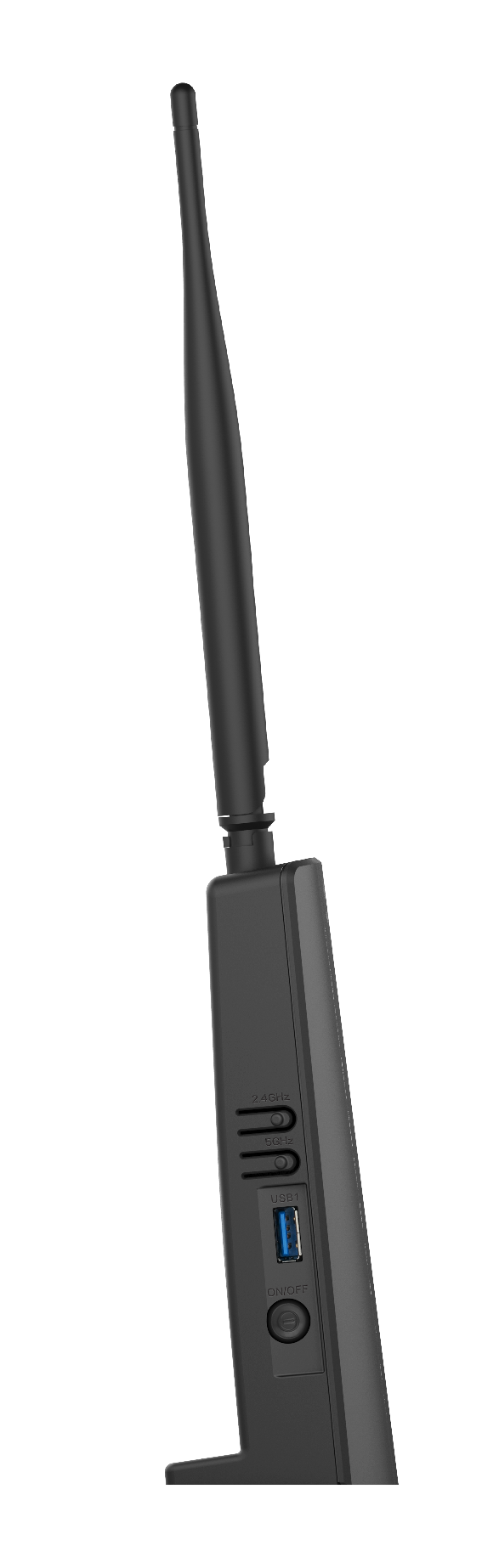

• Two USB 2.0 ports





ADSL Compliance

ADSL Standards

• Multi-mode

• Full-rate ANSI T1.413 Issue 2

• ITU-T G.992.1 (G.dmt) Annex A/C/I

• ITU-T G.992.2 (G.lite) Annex A/C

• ITU-T G.994.1 (G.hs)



ADSL 2 Standards

• ITU-T G.992.3 (G.dmt.bis) Annex A/J/K/L/M



ADSL 2+ Standards

• ITU-T G.992.5 Annex A/L/M



ATM/PPP Support

• Multiprotocol over AAL5 (RFC 1483/2684)

• Bridged and routed Ethernet encapsulation

• LLC encapsulation

• VC-based multiplexing

• ATM Forum UNI3.1/4.0 PVC (up to 8 PVCs)

• ATM Cell Format ITU-T Rec. I.361

• ATM Adaptation Layer Type 5 (AAL5)

• PPPoA (RFC2364)

• PPPoE (RFC2516)

• PPP Link Control Protocol (RFC 1661)

• Internet Protocol Control Protocol (RFC 1332)

• PPP Authentication Protocol (RFC 1334)

• PPP Challenge Handshake Authentication Protocol (RFC 1994)

• Microsoft PPP CHAP extensions (RFC 2433)



WLAN Specifications

• 802.11 n/g/b, up to 300 Mbps

• 802.11 ac/a, up to 433 Mbps

• Wi-Fi Protected Setup (WPS)

• Multiple SSIDs

• Automatic rate adapting

• WAN scheduling

• Auto channel selection

• WMM support

• 64-bit & 128-bit WEP

• WPA-PSK & WPA2-PSK

• MAC address filtering



Network Services

• IPv4

• DHCP server/client/relay

• DNS relay

• Dynamic DNS (DDNS)

• Routing Information Protocol (RIP) v1/v2

• NAT AGLs

• PPTP

• L2TP

• FTP

• RTSP (RealTime Streaming Protocol)

• SIP v1/v2

• IPsec

• Internet Control Message Protocol (ICMP)

• Virtual server (Port forwarding)

• Simple Network Time Protocol (SNTP)

• 802.1d MAC Bridge (up to 256*8 MAC addresses)

• QoS

• IPP/ToS

• DSCP QoS in 4-priority queues

• Application QoS in 4-priority queues

• Strict priority

• VLAN QoS in 4-priority queues

• QoS remarking based on IPP/ToS, DSCP and 802.1p

• TOS transparency through NAT

• Mapping to queue according to DSCP bits and physical port

• 802.1Q

• IGMP proxy v1/v2

• IGMP snooping v1/v2/v3



Standards

• IEEE 802.11ac

• IEEE 802.11n

• IEEE 802.11g

• IEEE 802.11b

• IEEE 802.3

• IEEE 802.3u



Universal Plug and Play Support

• UPnP based auto-configuration

• UPnP based port forwarding

• UPnP IGD 1.0

Security

• Attack Prevention

• Port scanning & illegal packet attack

• DoS Attack

• SYN Flooding

• Ping of Death

• Teardrop

• LAND attack

• IP Spoofing

• IP with zero length

• Smurf Attack

• TCP Null Scan

• Stateful Packet Inspection (SPI)

• Management Access Control for LAN/WAN sides

• IP filtering

• MAC filtering

• URL filter

• Demilitarized Zone (DMZ)



Device Management

• Web configuration

• Telnet management

• Webpage/X-Modem/FTP/TFTP firmware upgrade

• Diagnostic tools for ADSL and IP Ping

• One Touch Setup wizard



Advanced Features

• Multi-language web setup wizard

• UPnP support

• 802.1p QoS

• VPN pass-through/multi-session PPTP/L2TP/IPSec

• Dual-active firewall

• Network Address Translation (NAT)

• Stateful Packet Inspection (SPI)

Dimensions

• 198 x 146 x 54 mm



Weight

• 302 grams



Temperature

• Operating: 0 to 40 °C

• Storage: -20 to 65 °C



Humidity

• 5 % to 95 % non-condensing



Certifications

• CE

• Wi-Fi

• RCM

• Wi-Fi Protected Setup (WPS)

• A-Tick

• C-Tick
