D-Link

PowerLine AV2 600 Gigabit Adapter

DHP-600AV

Features Convenient Home Networking Solution

• Connect two rooms by simply plugging in a pair of adapters

• Share your Internet connection or share files between computers

• Subtle design discreetly blends into you home
Connectivity
• PowerLine data transfer rates of up to 600 Mbps2

• Gigabit Ethernet Port

• PowerLine interface compatible with IEEE 1901 and HomePlug AV2 standards
• Simple Connect button for secure, hassle-free network setup

• 128-bit AES data encryption with key management for secure communications over electrical wiring
• Plug in to any existing power outlet to create an instant network

• Connect more rooms by simply plugging in additional adapters

SPECIFICATION

Technical Specifications General

Powerline Interface
• Power plug (country-dependent)

Ethernet Interface

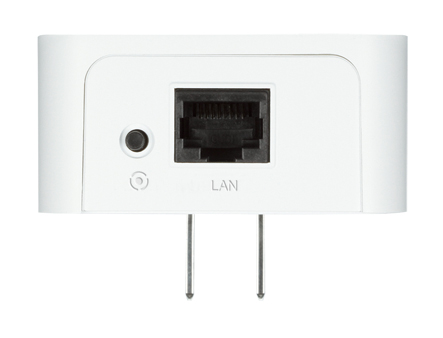

• RJ-45 Gigabit Ethernet LAN port Functionality

Standards
• IEEE 802.3
• IEEE 802.3u
• IEEE 1901
• HomePlug AV2

Security
• 128-bit AES data encryption

LEDs
• Power • Ethernet
• PowerLine

Powerline Modulation Scheme
• OFDM Symbol Modulation

Powerline Frequency Band
• 2 MHz to 70 MHz

Data Rate
• Ethernet: 10/100/1000 Mbps (auto negotiation)
• PowerLine: Up to 600 Mbps (PHY rate)

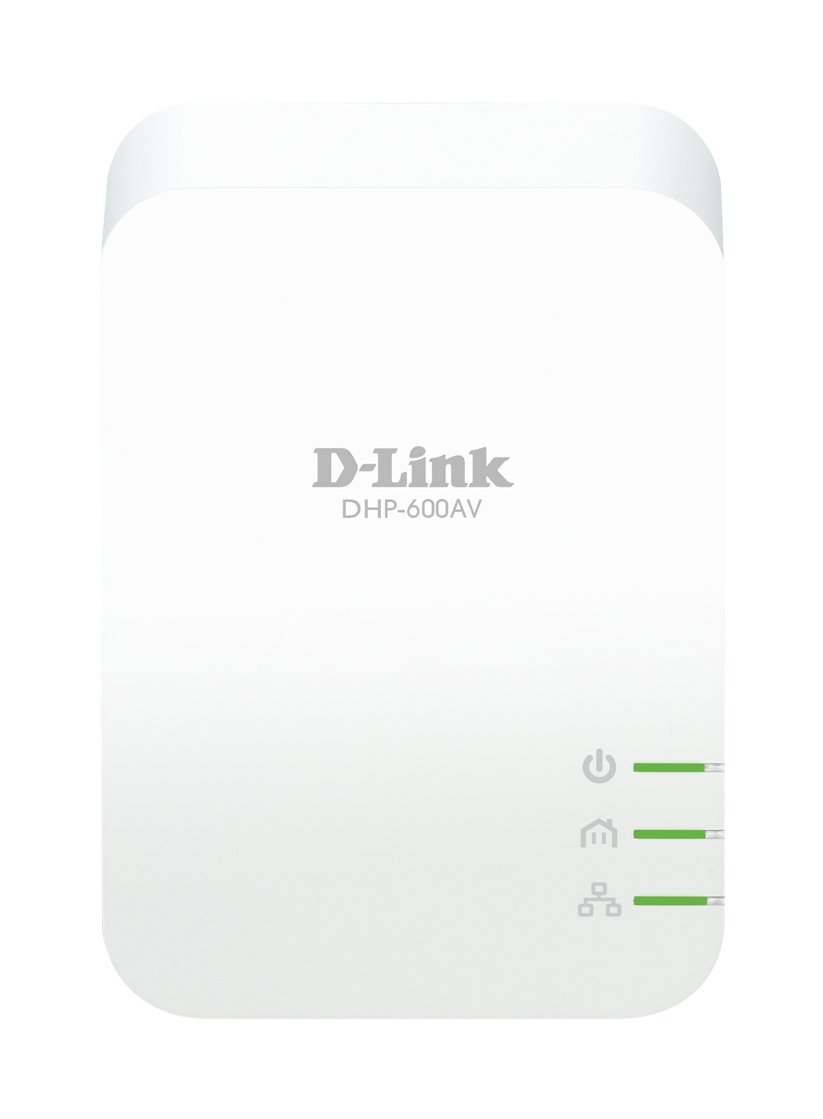

Power LED PowerLine LED Ethernet LED

DHP-600AV PowerLine AV2 600 Gigabit Adapter
Physical

Dimensions
• 87.47 x 62.2 x 30 mm (3.44 x 2.44 x 1.18 inches)

Weight
• 90 grams (0.20 lbs)

Power
• Input: 100 to 240 V AC, 50/60 Hz

Power Consumption
• 3.7 W maximum

Temperature
• Operating: 0 to 40 °C (32 to 104 °F)
• Storage: -20 to 65 °C (-4 to 149 °F)

Humidity
• Operating: 10% to 90% non-condensing
• Storage: 5% to 95% non-condensing

Certifications
• CE • FCC
• UL • CE/LVD

Specifications are subject to change without notice. D-Link is a registered trademark of D-Link Corporation and its overseas subsidiaries. All other trademarks belong to their respective owners. ©2013 D-Link Corporation. All rights reserved. E&OE.
