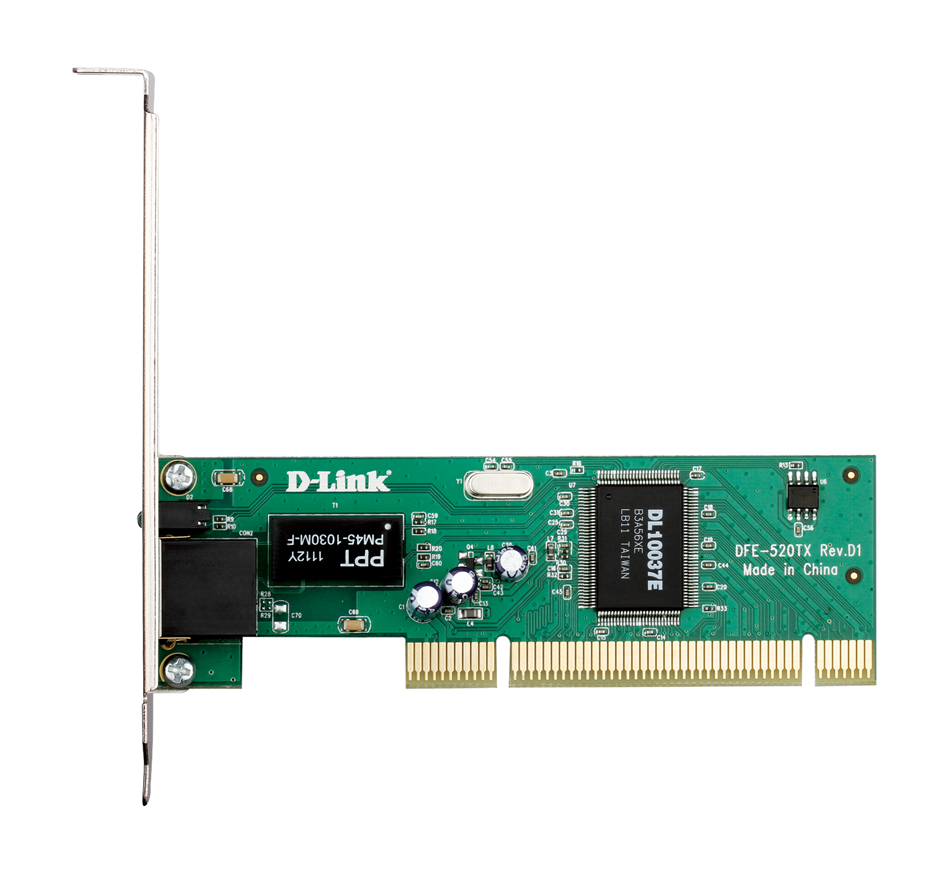

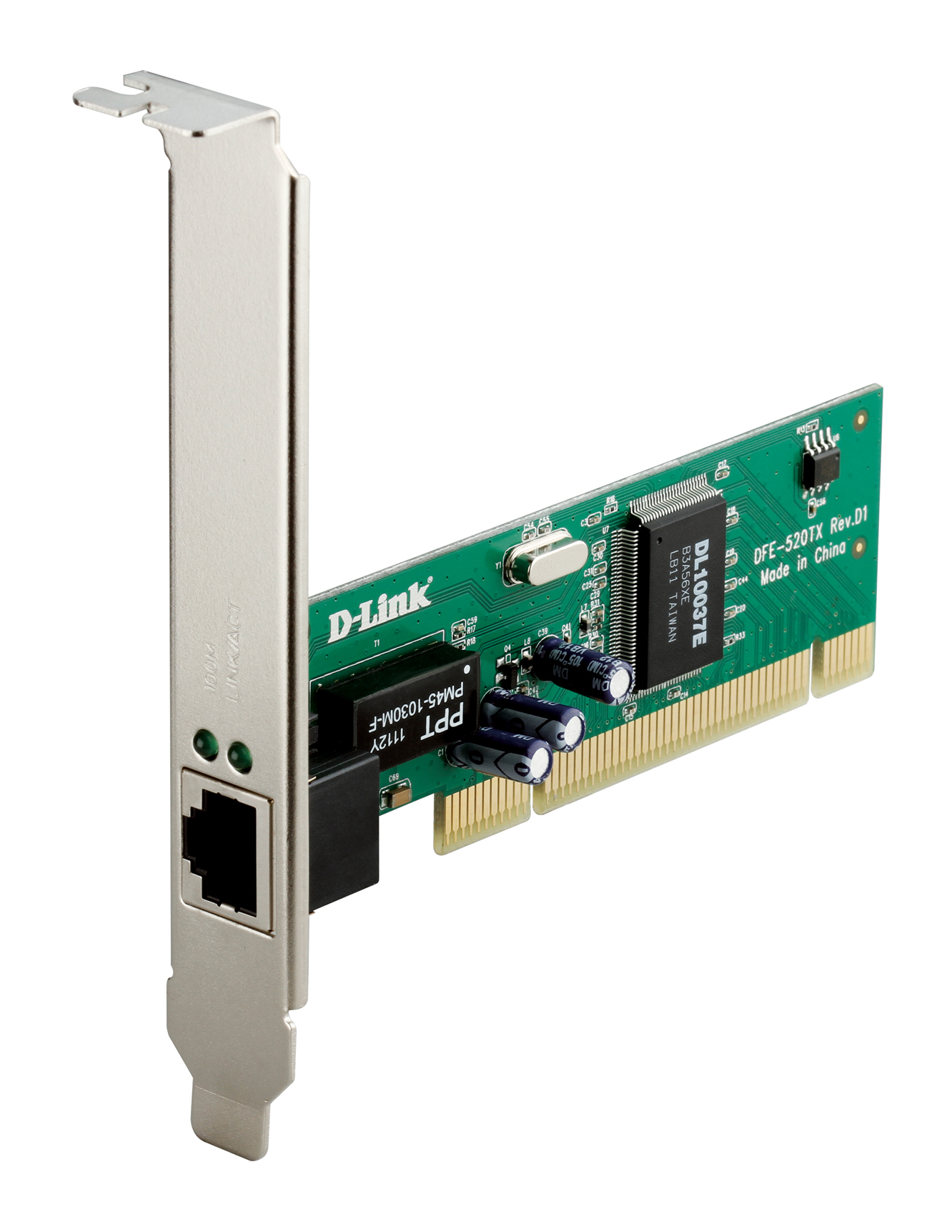

10/100Mbps Dual-Speed PCI Network Card

DFE-520TX * (This product has been discontinued)

DFE-520TX 10/100Mbps Dual-Speed PCI Network Card supporting 32-bit Bus Master operation, the card provides a guaranteed performance for your networked PC. Bus Master transfers data directly between the card and the PC host, bypassing your computer host CPU to alleviate its workload. This allows your computer to concentrate on the application at hand, instead of the network operation task. The card's single RJ-45 connector connects to either 10BASE-T Ethernet or 100BASE-TX Fast Ethernet. 10/100Mbps speeds are auto-negotiated, completely without your need to intervene. In the fast 200Mbps full-duplex mode, the card's embedded flow control provides a means to protect your data against possible loss during transmission on the network. When connected to a LAN switch that supports flow control, the card receives signals from the switch regarding buffer overrun during peak usage periods. The card then delays transmission until the switch is ready again to accept new data.

SPECIFICATION

802.3 10BASE-T/802.3u 100Base-TX standard
Auto-detection of 10Mbps and 100Mbps network speeds
Supports 802.1x function (MD5 only)
32-bit PCI Local Bus Master high-speed operation
Complies with Advanced Configuration and Power Interface specification v.1.0
Complies with PCI Power Management v.1.1
Supports 802.3x Flow Control
Supports PCI clock speed up to 33Mhz independent of network clock
On-board FIFO buffer, no external memory on host required

No	Description	Title	Type	File Size
1	User Manual	dfe-520tx a2 manual v3.00	pdf	0 MB
2	Datasheet	DFE-520TX ds	pdf	0.35 MB
