General

Device Interfaces

• 802.11n/g Wireless  LAN                                                              • Reset Button

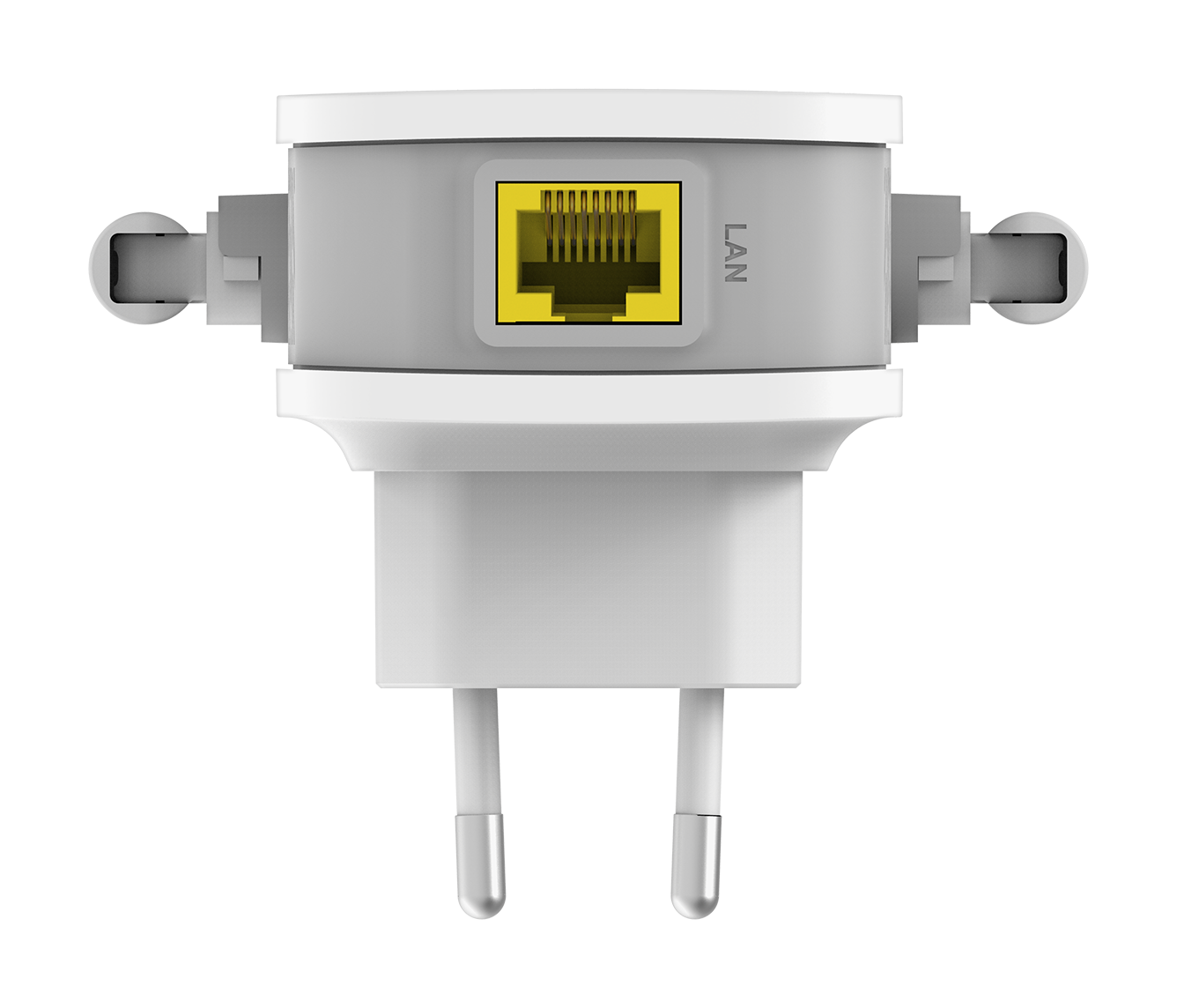

• 10/100 Fast Ethernet Port                                                             • WPS Button

LEDs

• Status / WPS

• 3 segment Wi-Fi signal strength indicator

Standards

• IEEE 802.11n                                                                     • IEEE 802.3u

• IEEE 802.11g

Antennas

• Two external antennas

PlugType

• Region dependent

                                                                                       Functionality

WirelessSecurity

• Wi-Fi Protected Access (WPA / WPA2)                                        • WPS (PBC)

Advanced Features

• D-Link One-Touch Extender Setup

Device Management

• Supports QRS Mobile app for iPhone ,iPad, iPodtouch, and Android mobile devices

• WebUI

                                                                                       Physical

Dimensions

• 97.9 x 50.7 x 48.7 mm (3.85 x 2.00 x 1.91 inches)

Weight

• 97 grams

Power

• Input: 110 to 240 VAC, 50/60 Hz

Temperature

• Operating: 0 to 40°C (32to104°F)                                               • Storage:- 20 to 70°C (-4to158°F)

Humidity

• Operating: 10% to 90% non-condensing                            • Storage: 5% to 90% non-condensing

Certifications

• FCC                                                                                  • LVD

• IC                                                                                       • UL

• CE                                                                                     • WPS

• RCM                                                                                  • Wi-FiCertified

• IDA                                                                                     • RoHS

• CB
