D-Link

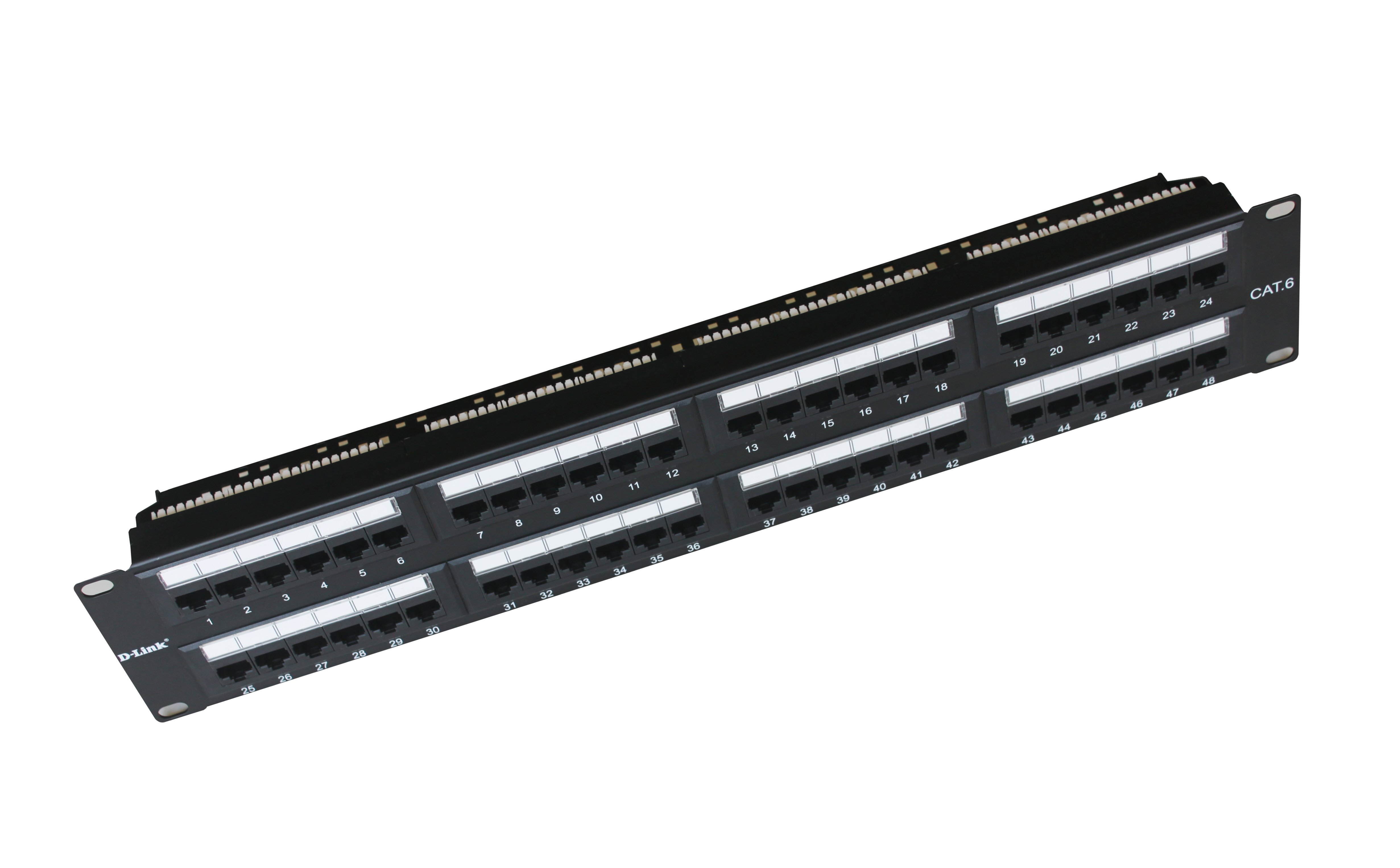

Cat6 UTP Fully Loaded Patch Panel

Available in 24 (1U) and 48 (2U) ports
Six Port RJ45 modules applied
ID stripes for identifying port allocations
Improved Cable Management with optional cable management bar
IDC: suitable for 22-26 AWG stranded and solid wire, compatible with both 110& Krone punch down tools
Mounts in standard 19” racks
The Cat6 transmission performance is in compliance with the ANSI/TIA/EIA 568C.2 standard

1. Identification: ID plate, PC, Transparent color with paper

2. Panel: SPCC. 1.6 mm thickness with Black (RAL 9005) Colour painted

3. RJ45 Jack:

4. RJ45 Jack Contact:

5. IDC:

6. Jack Bracket Set: ABS

7. Support Bar: SPCC, 1.6 mm thickness with Black (RAL 9005) Colour painted

8. PCB: FR4, UL 94V-0
