D-Link

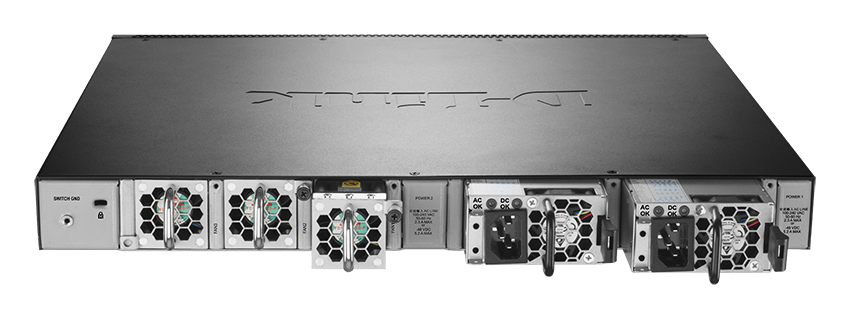

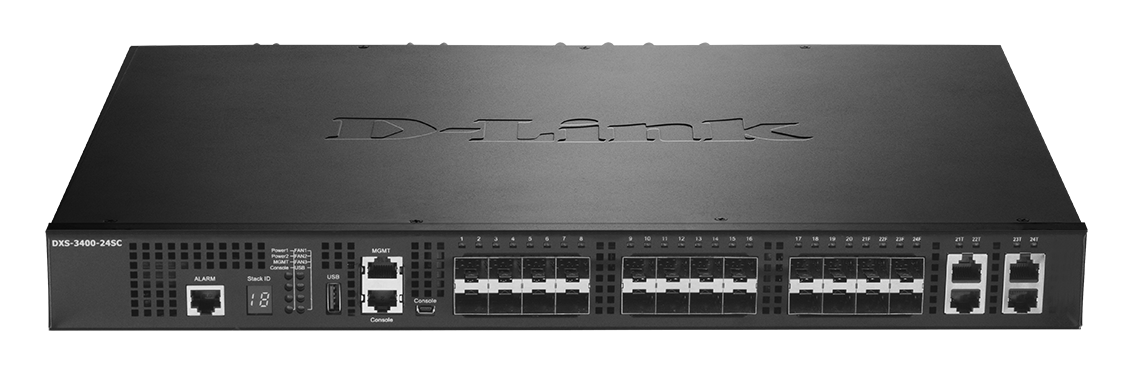

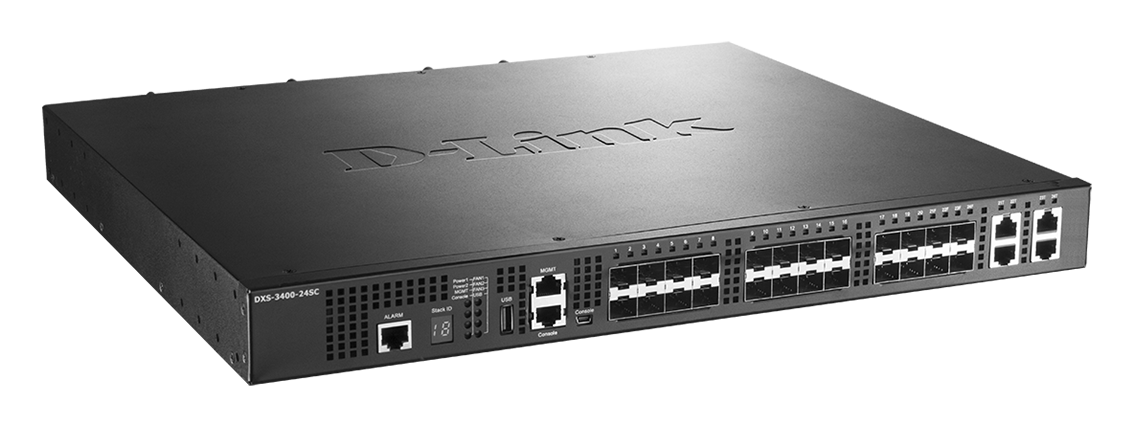

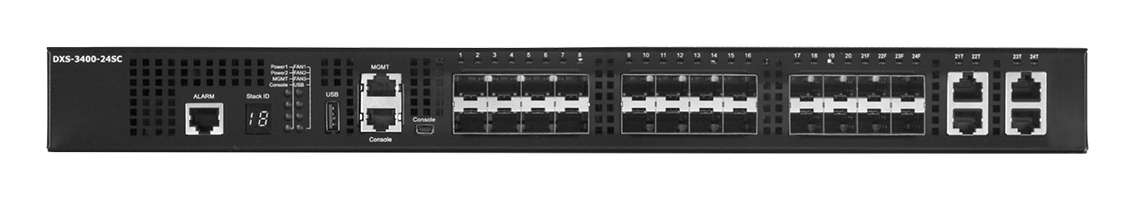

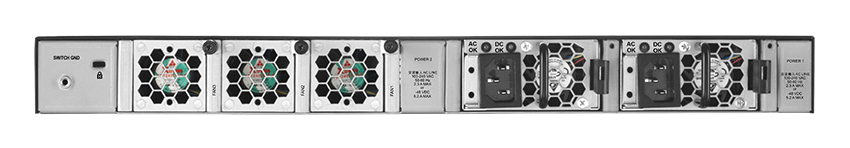

20-port 10 GbE SFP+ and 4-port 10GBASE-T/SFP+ combo design L3 Managed Switch

DXS-3400-24SC #End-Of-Life#

SPECIFICATION

Interfaces

• 20-port 10G SFP+ and 4-port 10GBASE-T/SFP+ Combo Port

Console Port

• RJ45 and Mini USB console ports for out-of-band CLI management

Management Port

• 10/100/1000BASE-T RJ-45 Ethernet for out-of-band IP management

USB Port

• 1 port

Switching Capacity

• 480 Gbps

Max. Forwarding Rate

• 357.12 Mpps

Packet Buffer Memory

• 4 MB

MAC Address Table

• Up to 48K entries

Physical parameters

Power Input

• 100 to 240 V, 50/60 Hz, 2 A

Maximum Power Consumption

• 113.9 W

Standby Power Consumption

• 59.1 W

Heat Dissipation (Max.)

• 388.399 BTU/hr

Dimensions (W x D x H)

• 441 x 44 x 380 mm

Weight

• 7.45 Kg (single PSU)

• 5.1 Kg (without PSU)

Operating Temperature

• -5 to 50 °C

Storage Temperature

• -40 to 70 °C

Operating Humidity

• 0% to 95% RH

Storage Humidity

• 0% to 95% RH

Safety

• cUL, CB, CE, CCC, BSMI

EMI/EMC

• CE, FCC, C-Tick, VCCI, BSMI, CCC

Stackability

• Physical Stacking

• Up to 80G stacking bandwidth

• Up to 4 switches in a stack

• Ring/chain topology support

• Virtual Stacking/Clustering of up to 32 units

• Supports D-Link Single IP Management

L2 Features

• MAC Address Table

• Up to 48K entries

• Flow Control

• 802.3x Flow Control when using Full Duplex

• Back Pressure when using Half Duplex

• HOL Blocking Prevention

• Spanning Tree Protocol

• 802.1D STP

• 802.1w RSTP

• 802.1s MSTP

• Root Guard

• Loop Guard

• Jumbo Frame

• Up to 12KB

• 802.1AX Link Aggregation

• Max. 32 groups per device, 8 ports per goup

• ERPS (Ethernet Ring Protection Switching)

• Port Mirroring

• Supports One-to-One, Many-to-One

• Supports Mirroring for Tx/Rx/Both

• Supports 4 mirroring groups

• Flow Mirroring

• Supports Mirroring for Rx

• VLAN Mirroring

• L2 Protocol Tunneling

L2 Multicast Features

• MLD Snooping

• MLD v1/v2 Snooping

• Supports 256 groups

• Host-based MLD Snooping Fast Leave

• Supports 64 static MLD groups

• MLD Snooping Querier

• Per VLAN MLD Snooping

• MLD Proxy Reporting • IGMP Snooping

• IGMP v1/v2/v3 Snooping

• Supports 256 IGMP groups

• Supports 64 static IGMP groups

• IGMP per VLAN

• IGMP Snooping Querier

• Host-based IGMP Snooping Fast Leave

• PIM Snooping

L3 Features

• ARP

• 512 Static ARP

• Supports Gratuitous ARP

• IP Interface

• Supports 256 interfaces

• Loopback Interface

• IPv6 Tunneling

• Static

• ISATAP

• GRE

• 6to4

• IGMP Proxy Reporting

• VRRP v2/v3

L3 Routing

• Static Routing

• Max. 256 IPv4 entries

• Max. 128 IPv6 entries

• Supports route redistribution

• Supports secondary route

• Default Routing

• Policy-based Route (PBR)

• Route Redistribution

• Supports 512 hardware routing entries shared by IPv4/IPv6

• Max. 512 IPv4 entries

• Max. 256 IPv6 entries

• Supports 32K hardware L3 forwarding entries shared by IPv4/IPv6

• Max. 32K IPv4 entries

• Max. 16K IPv6 entries

• RIP

• RIP v1/v2

• RIPng 2

VLAN

• 802.1Q

• 802.1v

• Double VLAN (Q-in-Q)

• Port-based Q-in-Q

• Selective Q-in-Q

• Port-based VLAN

• MAC-based VLAN

• Subnet-based VLAN

• Private VLAN

• VLAN Group

• Max. 4K static VLAN groups

• Max. 4094 VIDs

• ISM VLAN (Multicast VLAN)

• Voice VLAN

• Auto Surveilliance VLAN

• VLAN Trunking

• GVRP

• Up to 255 dynamic VLANs

AAA

• 802.1X Authentication

• Supports Port-based access control

• Supports Host-based access control

• Identity-driven Policy Assignment

• Dynamic VLAN Assignment

• QoS Assignment

• ACL Assignment

• Web-based Access Control (WAC)

• Identity-driven Policy Assignment

• Dynamic VLAN Assignment

• QoS Assignment

• ACL Assignment

• MAC-based Access Control (MAC)

• Identity-driven Policy Assignment

• Dynamic VLAN Assignment

• QoS Assignment

• ACL Assignment

• Compound Authentication

• Microsoft NAP

• Support 802.1X NAP

• Support DHCP NAP

• RAIDUS and TACACS+ Authentication

• Authentication Database Failover

• Guest VLAN

Quality of Service (QoS)

• 802.1p Quality of Service

• 8 queues per port

• Queue Handling

• Strict

• Weighted Round Robin (WRR)

• Strict + WRR

• Deficit Round Robin (DRR)

• Weighted Deficit Round Robin (WDRR)

• Bandwidth Control

• Port-based (Ingress/Egress, min. granularity 64 Kb/s)

• Flow-based (Ingress/Egress, min. granularity 64 Kb/s)

• Per queue bandwidth control (min. granularity 64 Kb/s)

• Support for following actions:

• Remark 802.1p priority tag

• Remark TOS/DSCP tag

• Bandwidth Control

• Committed Information Rate (CIR)

• QoS based on

• 802.1p Priority Queues

• DSCP

• IP address

• MAC address

• VLAN

• IPv6 Traffic Class

• IPv6 Flow Label

• TCP/UDP port

• Switch Port

• Ether Type

• ToS/IP Preference

• Protocol Type

• Three Color Marker

• trTCM

• srTCM

• Congestion Control

• WRED

Data Center Bridging (DCB)

• 802.1Qbb Priority-based Flow Control (PFC)

• 802.1Qaz Enhanced Transmission Selection (ETS)

• 802.1Qau Congestion Notification (CN)

Access Control List (ACL)

• ACL based on:

• 802.1p priority

• VLAN

• MAC address

• EtherType

• IP address

• DSCP

• Protocol type

• TCP/UDP port number

• IPv6 Traffic Class

• IPv6 Flow Label

• Max. ACL entries:

• Ingress

• IPv4: 1792

• IPv6: 448

• Egress

• IPv4: 512

• IPv6: 256

• 3K VLAN access map

• Time-based ACL

Security

• Port Security

• Supports up to 12K MAC addresses per port/system

• Broadcast/Multicast/Unicast Storm Control

• D-Link Safeguard Engine

• DHCP Server Screening

• IP-MAC-Port Binding

• Dynamic ARP Inspection

• IP Source Guard

• DHCP Snooping

• IPv6 Snooping

• DHCPv6 Guard

• IPv6 Route Advertisement (RA) Guard

• IPv6 ND Inspection

• ARP Spoofing Prevention

• Max. 64 entries

• Duplicate Address Detection (DAD)

• L3 Control Packet Filtering 2

• Unicast Reverse Path Forwarding (URPF)

• Traffic Segmentation

• SSL

• Supports v1/v2/v3

• Supports IPv4/v6 access

• SSH

• Supports SSH v2

• Supports IPv4/v6 access

• BPDU Attack Prevention

• DOS Attack Prevention

Operations, Administration, and Maintenance

• Cable Diagnostics

• 802.3ah Ethernet Link OAM

• D-Link Unidirectional Link Detection (DULD)

• Dying Gasp

• 802.1ag Connectivity Fault Management (CFM)

• Y.1731 OAM

• Optical Transceiver Digital Diagnostic Monitoring (DDM)

Management

• Web-based GUI

• CLI

• Telnet

• TFTP Server

• TFTP Client

• FTP Client

• Secure FTP (SFTP) Server

• Traffic Monitoring

• SNMP

• Supports v1/v2c/v3

• SNMP Trap

• System Log

• DHCP Client

• DHCP Server

• DHCP Relay options 60, 61, 82

• Multiple Image

• Multiple Configuration

• Flash File System

• DNS Client

• CPU Monitoring

• MTU Setting

• ICMP Tools

• Ping

• Traceroute

• LLDP & LLDP-MED

• DNS Relay

• SMTP

• DHCP Auto Configuration

• NTP

• RCP (Remote Copy Protocol)

• RMONv1

• RMONv2

• Trusted Host

• Password Encryption

• Debug Command

• sFlow

• Switch Resource Management (SRM)

• Microsoft Network Load Balancing (NLB) 2

• Openflow v1.3
