8-port 10GBASE-T and 2-port 10GBASE-T/SFP+ combo port 10G Smart Switch
DXS-1210-10TS
Description:
Switch-DXS 1210-10TS is inexpensive device to allow operation in a network in accordance with any business segment. Due to the high performance switch DXS-1210-10TS allows you to use services such as cloud computing, virtualization, and application server-to-server. DXS-1210-10TS is the ideal solution for small and medium-sized businesses.
Saving energy
Using the technology of D-Link Green, the switch DXS-1210-10TS able to save energy without sacrificing performance and functionality of the devices. This switch is equipped with a silent smart fans that are capable of adjusting the rotational speed depending on the temperature, thus saving energy and reducing costs without affecting performance. The switch also determines the connection status of each port and automatically turns inactive ports in sleep mode. Due to the chipset used by the switch DXS-1210-10TS can significantly reduce energy costs.
Easy operation and function of the level 2
The switch supports a full set of Layer 2 features, including Port Mirroring, Spanning Tree and Link Aggregation Control Protocol (LACP). In addition, the switch supports the Cable Diagnostics function and Loopback Detection. Loopback Detection is used to determine the loops and automatic shut-off port that detected the loop. Cable Diagnostics is designed to determine the quality of the twisted pair, and the type of cable error.
QoS, bandwidth control
Switch DXS-1210-10TS supports Auto Surveillance VLAN (ASV) 1 and Auto Voice VLAN 1, and is an ideal solution for the deployment of VoIP and video. Auto Surveillance VLAN 1 - this is a new, industry-leading technology, built-in switches, D-Link Smart. This technology combines data and video transmission via a single switch, reducing thus the cost of equipment and facilities. ASV 1 also guarantees a high quality video viewing in real time and management without prejudice to the transfer of conventional data network. The automatic determination of the connected VoIP equipment allows you to put the "voice" traffic to a dedicated VLAN. Because of the highest priority and individual VLAN, this feature provides the quality and security of VoIP-traffic. In addition, DSCP marks Ethernet-packs with the appointment of the network traffic of different services. As a result, voice and video traffic gets a higher priority than other types of traffic. In addition, bandwidth management feature allows network administrators to reserve bandwidth for a variety of applications that require high bandwidth or highest priority.
Network Security
Function D-Link Safeguard Engine protect the switches against traffic flooding caused by virus. Authentication based on 802.1X port 1 allows you to use an external RADIUS server to authenticate users. In addition, the Access Control List (ACL) feature enhances network security and helps to protect the network by filtering traffic from unauthorized MAC-addresses or IP-addresses. The switches also support the ARP Spoofing attack prevention 1, which protects from attacks on the network Ethernet, which can cause a change in the traffic or delay by sending false ARP-messages. To prevent ARP Spoofing attacks 1switch uses the Packet Control ACLs to block packets containing false ARP-message. To increase security, the DHCP Server Screening, prohibiting access by unauthorized DHCP-servers.
Convenient operation
Using the utility D-Link Network Assistant allows administrators to remotely manage the network at the port level. Utility D-Link Network Assistant supports automatic detection and display on the D-Link switches Series Smart, belonging to the same network segment L2. The utility provides access to the switch from anywhere on the network without the need to enter the IP-address or subnet mask, which allows you to setup and basic installation of devices found, including password change and update software. Switch DXS-1210-10TS program also supports D-View 6.0, and a command line interface (CLI) through Telnet. D-View 6.0 is a Network Management System that allows you to control the most important parameters such as performance, reliability, flexibility and security.
Easy integration into an existing network

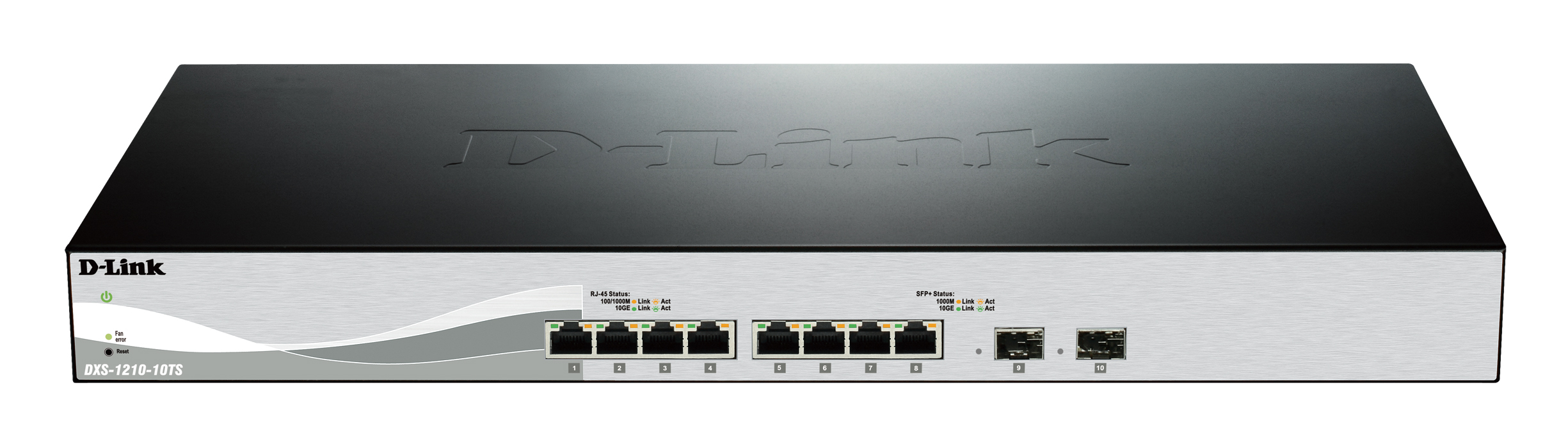

Switch DXS-1210-10TS equipped with 8 copper ports, Gigabit Ethernet, provides connectivity over existing cable category 6 twisted-pair and 2-port SFP +.
1 This function will be available in future software releases.
