N300 4G SMART ROUTER

G403 Eagle Pro AI

4G LTE CAT4 Connectivity at up to 150 Mbps
Support Wi-Fi 4 (802.11n), Speed up to 300 Mbps
1x 10/100 Mbps Ethernet WAN Port and 4x 10/100 Mbps Ethernet LAN Ports
Use a SIM/UICC card to connect the Internet
WPA/WPA2/WPA3 Support
Voice Control for an easier home Wi-Fi networking experience (Alexa/Google Assistant)
EAGLE PRO AI features including:
- AI Wi-Fi Optimizer
- AI Parental Controls
- AI Assistant
- Ookla Speed Test
- QoS Technology

Device Interfaces	4 x 10/100 Mbps LAN ports, 1 x 10/100 Mbps WAN port, 1 x WPS button, 1 x Reset button, 1 x Power button, 1 x SIM Card slot, 1 x Power connector
IEEE Standards	IEEE 802.11n/g/b, IEEE 802.3u/b, IEEE 802.11k/v

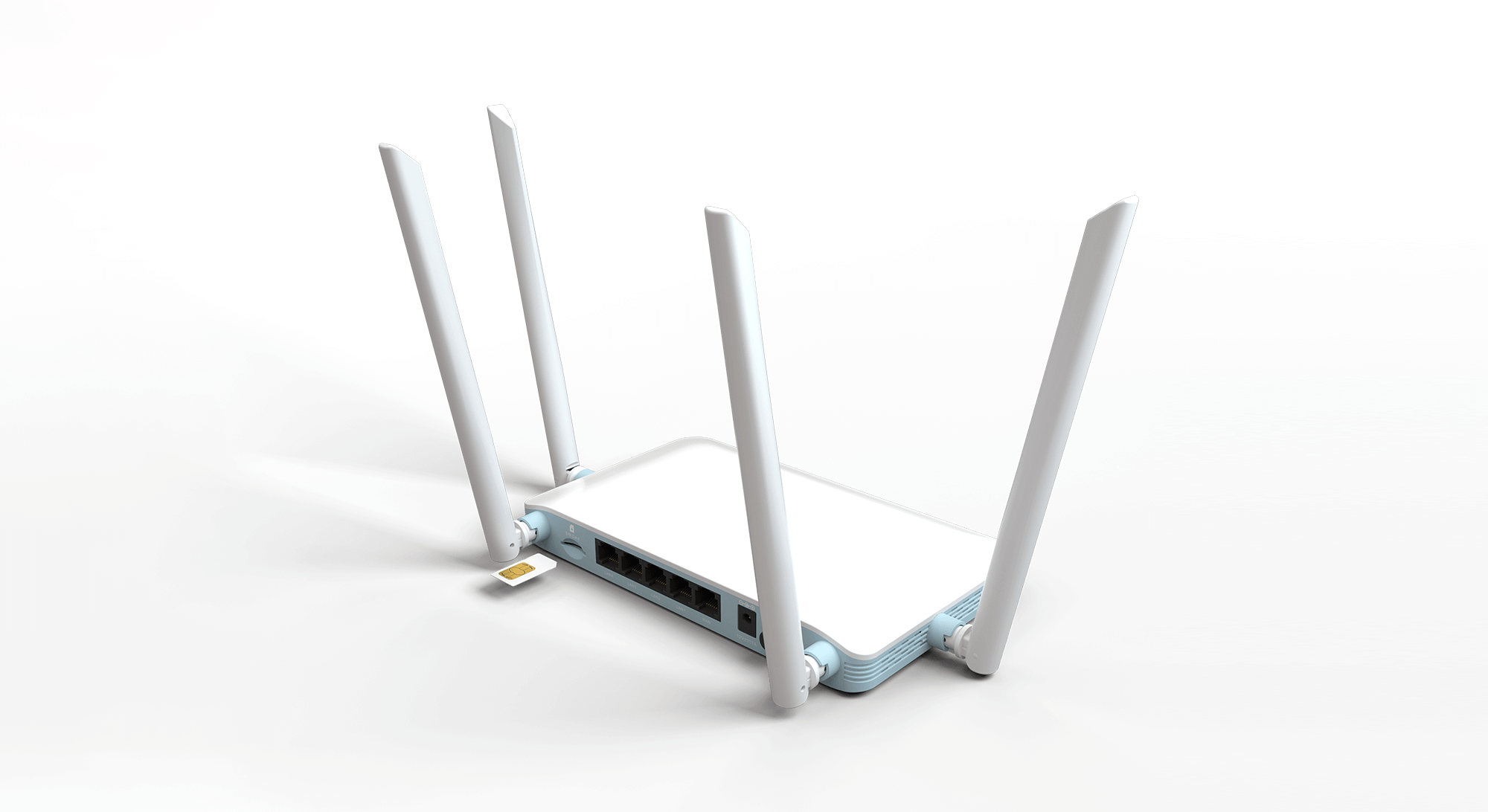

Antennas	Two external 4G LTE antennas and two external Wi-Fi antennas
LTE Data Rates	LTE Downlink up to 150 Mbps, LTE Uplink up to 50 Mbps, DC-HSPA Downlink up to 42 Mbps, DC-HSPA Uplink up to 5.72 Mbps
Wi-Fi Data Rate	2.4 GHz Up to 300 Mbps
Frequency Support	LTE Bands: Release 10 CAT4: Band 1/3/7/8/20/28/38/40/41 UMTS/HSPA/HSPA+/DC-HSPA+: Band 1/8 (900/2100 MHz) GSM/GPRS/EDGE: 900/1800 MHz
Firewall	Stateful Packet Inspection, Anti-spoofing Checking, IP/MAC Address Filtering, 1 x DMZ
Security Features	WPA (Wi-Fi Protected Access), WPA2, WPA3, WPS (Wi-Fi Protected Setup)
Device Management	EAGLE PRO AI app (iOS and Android), Web UI
LED Display	Power, Internet, Wi-Fi, 4G/3G, LAN, Signal Strength
Voice Assistants	Amazon Alexa, the Google Assistant
Dimensions	208 x 121.85 x 23.5 mm (8.19 x 4.8 x 0.9 in)
Weight	290 g (10.23 oz)
Power Input	12V/1A
Operating Temperature	0 to 40 °C (32 to 104 °F)
Storage Temperature	-10 to 70 °C (14 to 158 °F)
Operating Humidity	10% to 90% non-condensing
Certifications	CE / NCC / RCM

No	Description	Title	Type	File Size
1	Datasheet	Datasheet	pdf	0.86 MB
